ART GALLERY

Audio Regression Test baselines — waveform + spectrogram fingerprints

122 audio baselines · 52 scenarios · waveform + log-freq spectrogram

Generated from fbc0555

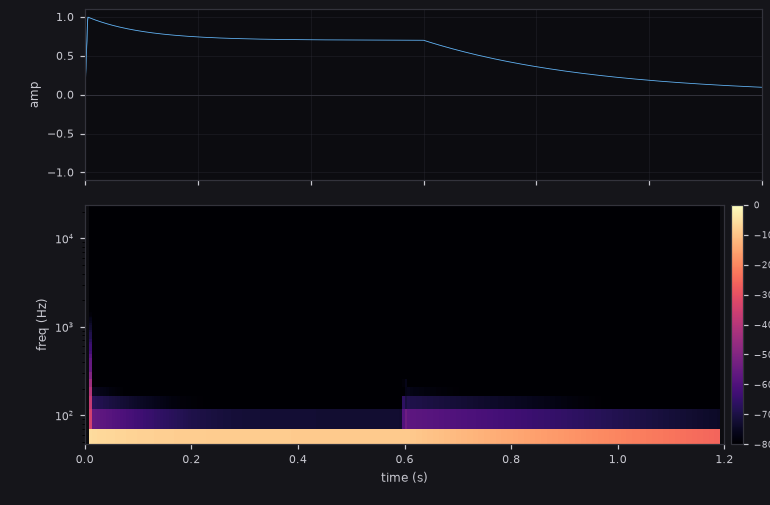

adsr (1)

env

peak 1.000 (0.0 dBFS) · rms -4.6 dBFS · crest 4.6 dB · centroid 3 Hz · flat 0.000 · 1200 ms · 57600 smp

analog-logic-maths (5)

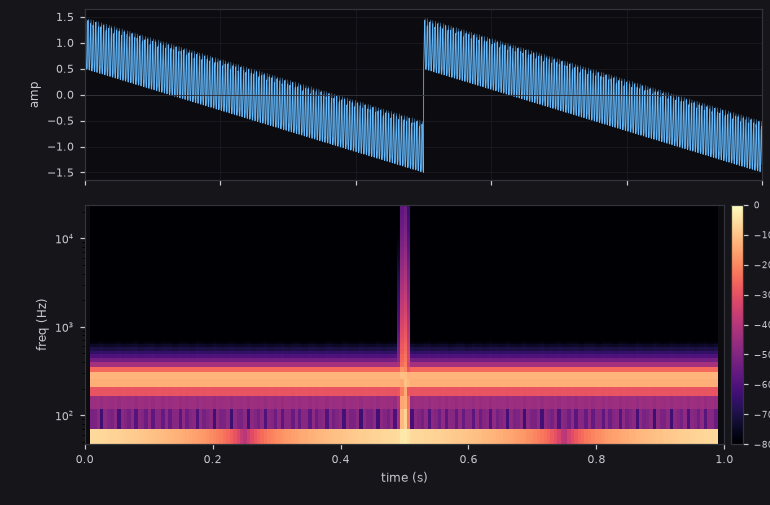

diff

peak 1.499 (3.5 dBFS) · rms -3.4 dBFS · crest 6.9 dB · centroid 82 Hz · flat 0.000 · 1000 ms · 48000 smp

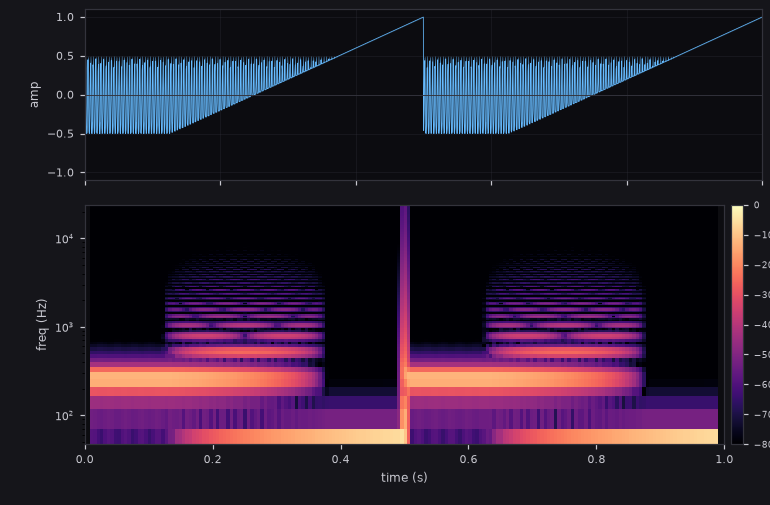

max

peak 1.000 (-0.0 dBFS) · rms -6.4 dBFS · crest 6.4 dB · centroid 108 Hz · flat 0.000 · 1000 ms · 48000 smp

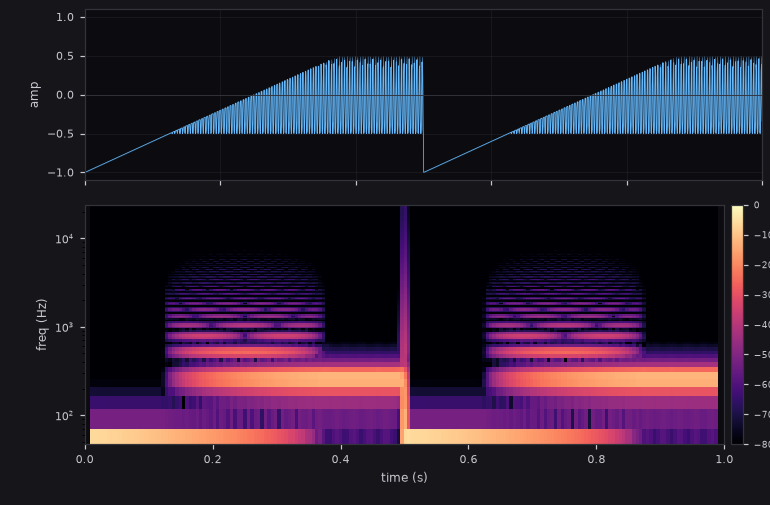

min

peak 1.000 (0.0 dBFS) · rms -6.4 dBFS · crest 6.4 dB · centroid 104 Hz · flat 0.000 · 1000 ms · 48000 smp

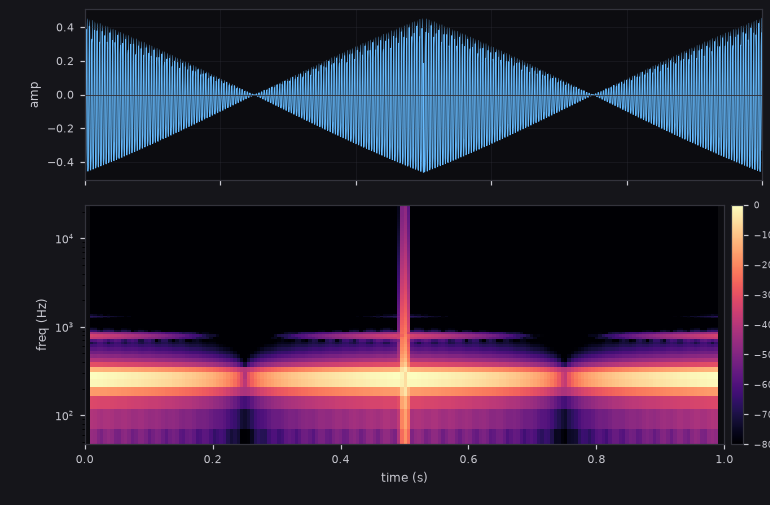

product

peak 0.462 (-6.7 dBFS) · rms -14.1 dBFS · crest 7.4 dB · centroid 267 Hz · flat 0.000 · 1000 ms · 48000 smp

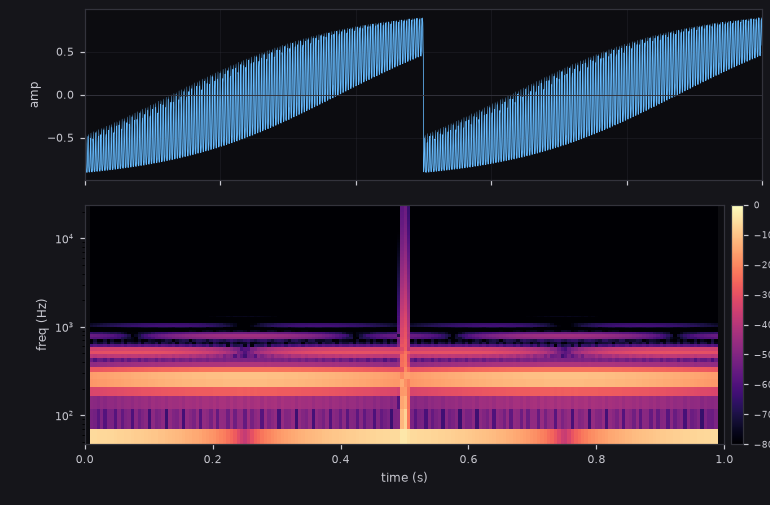

sum

peak 0.904 (-0.9 dBFS) · rms -5.6 dBFS · crest 4.7 dB · centroid 77 Hz · flat 0.000 · 1000 ms · 48000 smp

analog-vco (17)

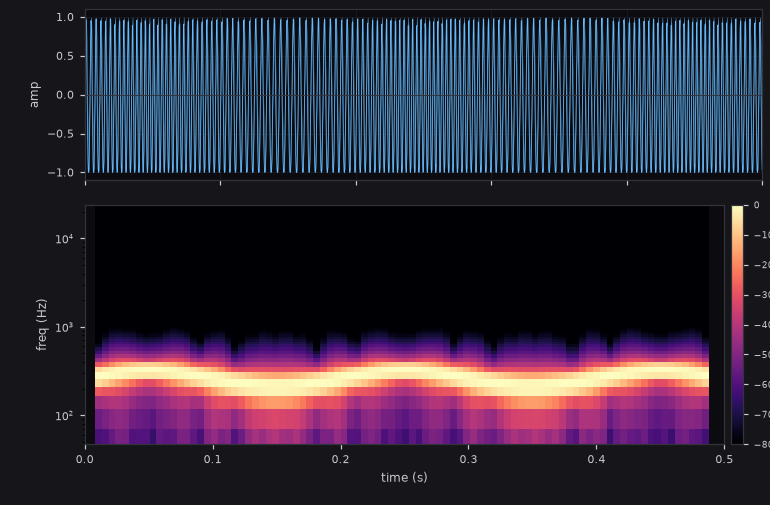

fm-morph-sine

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 272 Hz · flat 0.000 · 500 ms · 24000 smp

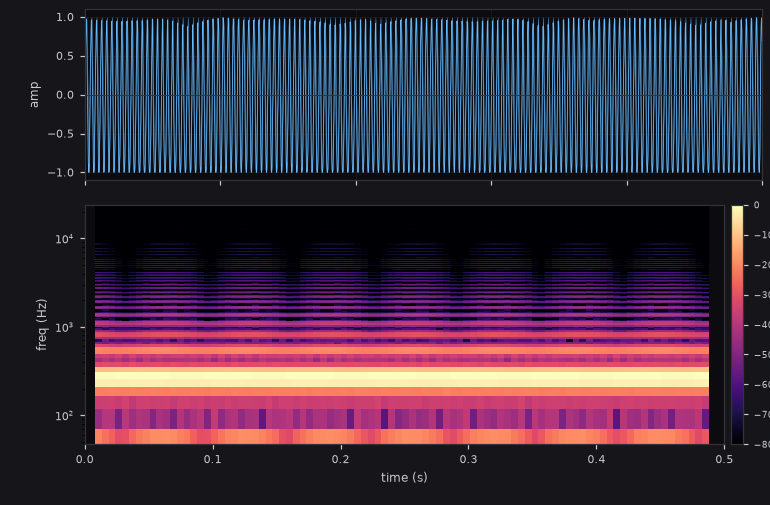

fm-sync-c1-bsaw

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 268 Hz · flat 0.000 · 500 ms · 24000 smp

fm-sync-c1-bsine

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 271 Hz · flat 0.000 · 500 ms · 24000 smp

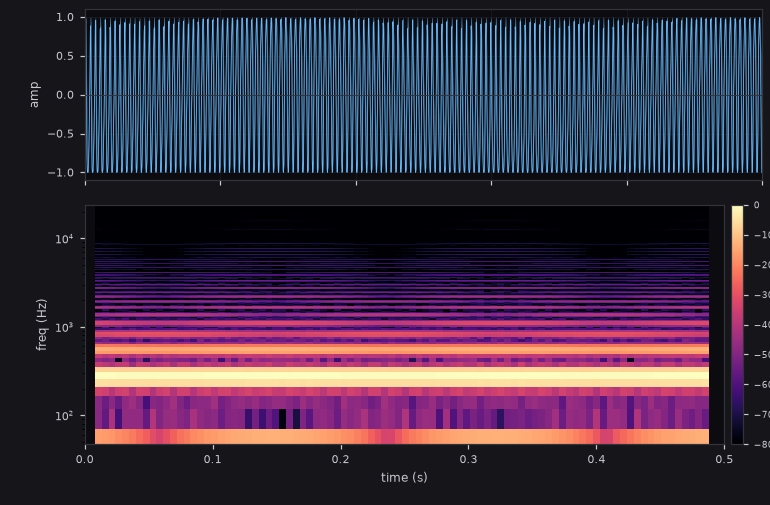

fm-sync-c1-bsquare

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 280 Hz · flat 0.000 · 500 ms · 24000 smp

fm-sync-c1-vibrato

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 262 Hz · flat 0.000 · 500 ms · 24000 smp

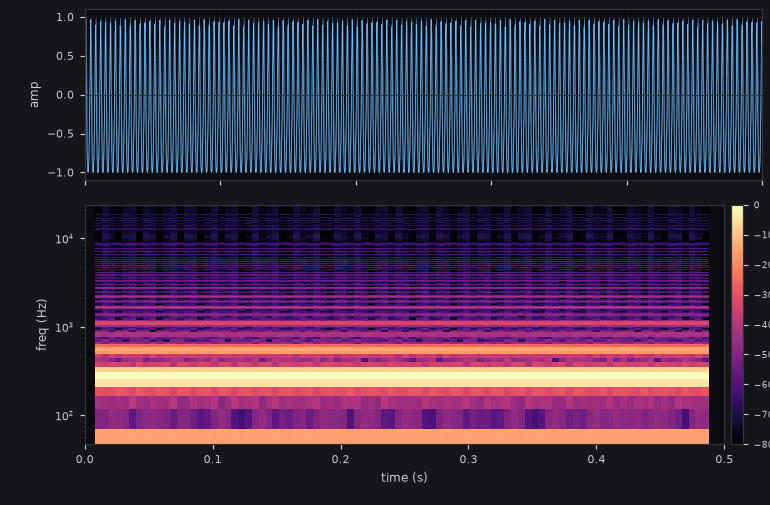

fm-sync-c2-bmaster

peak 1.000 (0.0 dBFS) · rms -2.7 dBFS · crest 2.7 dB · centroid 285 Hz · flat 0.000 · 500 ms · 24000 smp

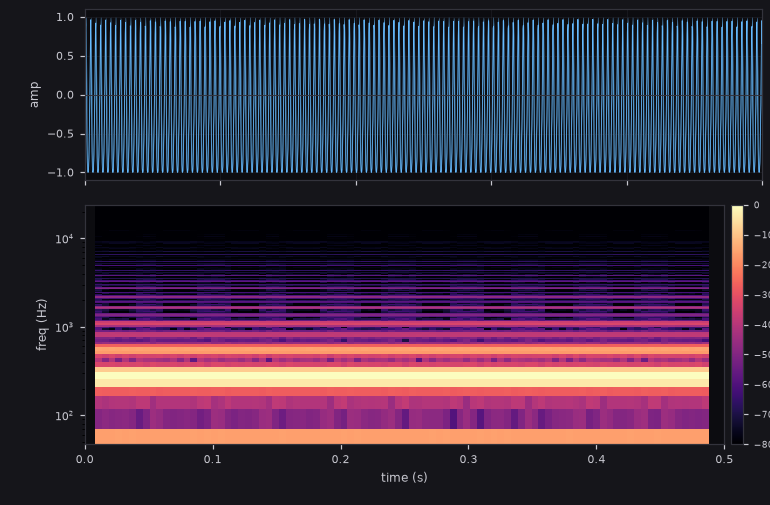

fm-sync-c3-feedback-a

peak 1.000 (0.0 dBFS) · rms -2.8 dBFS · crest 2.8 dB · centroid 282 Hz · flat 0.000 · 500 ms · 24000 smp

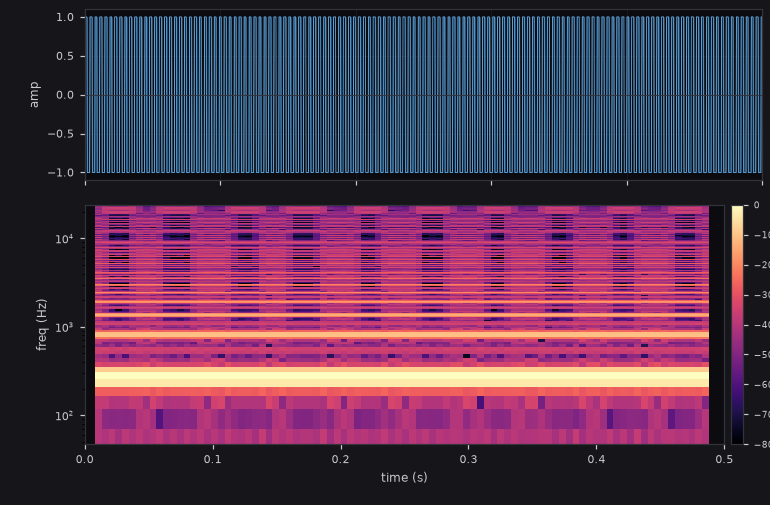

fm-sync-c3-feedback-b

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 694 Hz · flat 0.002 · 500 ms · 24000 smp

fm-sync-c4-mutual-a

peak 1.000 (0.0 dBFS) · rms -23.1 dBFS · crest 23.1 dB · centroid 5115 Hz · flat 0.000 · 500 ms · 24000 smp

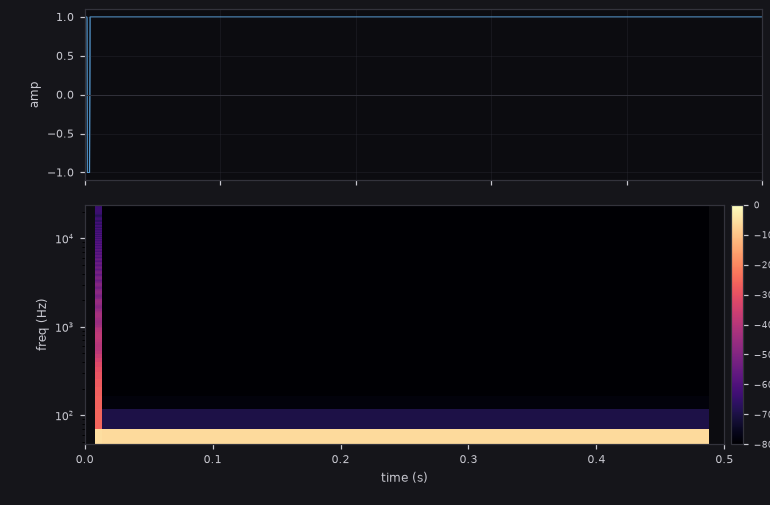

fm-sync-c4-mutual-b

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 378 Hz · flat 0.012 · 500 ms · 24000 smp

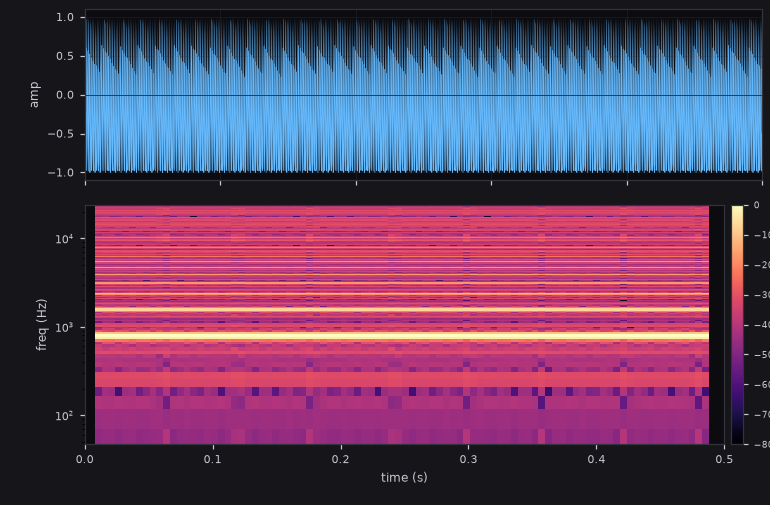

hard-sync

peak 1.000 (0.0 dBFS) · rms -4.8 dBFS · crest 4.8 dB · centroid 2167 Hz · flat 0.005 · 500 ms · 24000 smp

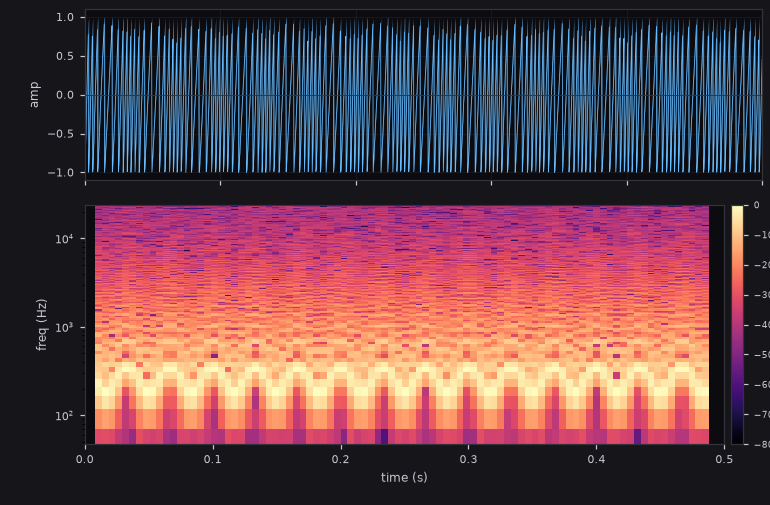

pm-morph-saw

peak 1.000 (0.0 dBFS) · rms -4.8 dBFS · crest 4.8 dB · centroid 892 Hz · flat 0.030 · 500 ms · 24000 smp

pm-morph-sine

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 263 Hz · flat 0.000 · 500 ms · 24000 smp

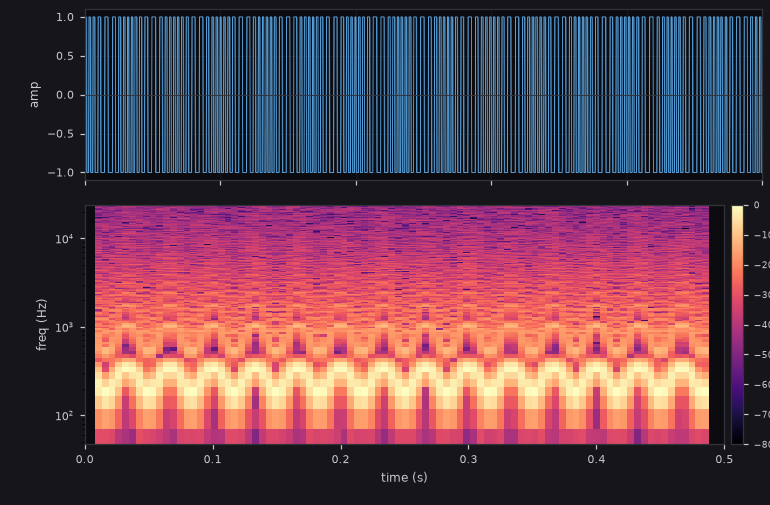

pm-morph-square

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 669 Hz · flat 0.017 · 500 ms · 24000 smp

pw-sweep-50

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 673 Hz · flat 0.001 · 500 ms · 24000 smp

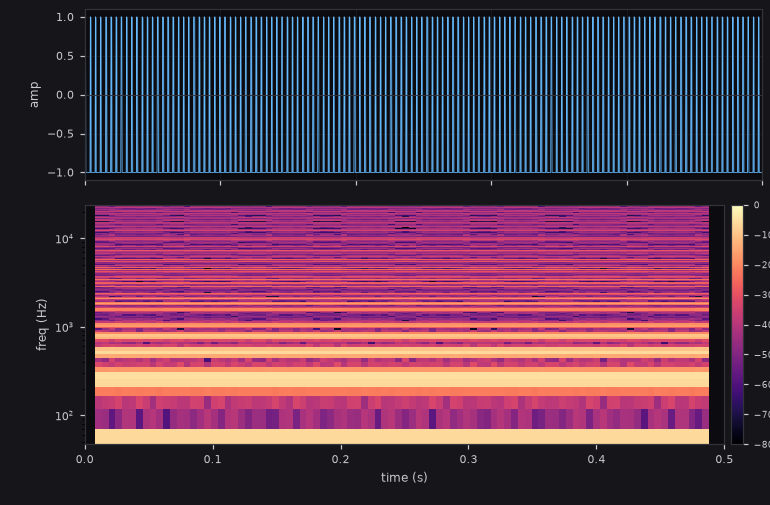

pw-sweep-narrow

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 962 Hz · flat 0.002 · 500 ms · 24000 smp

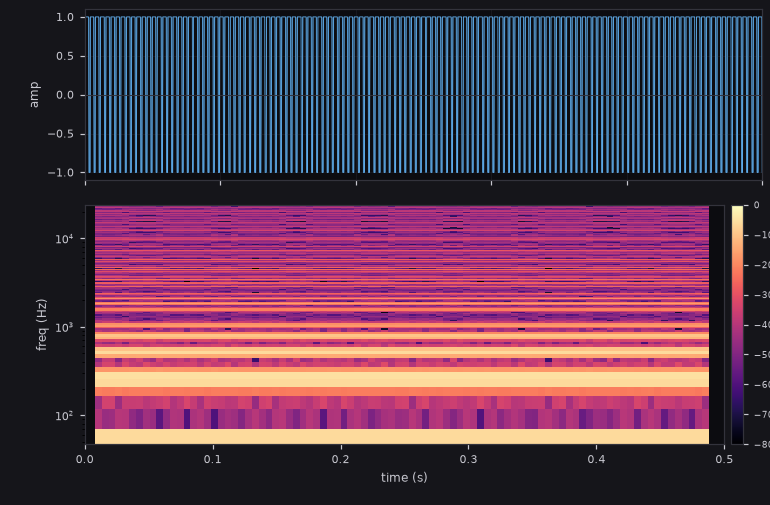

pw-sweep-wide

peak 1.000 (0.0 dBFS) · rms 0.0 dBFS · crest 0.0 dB · centroid 965 Hz · flat 0.002 · 500 ms · 24000 smp

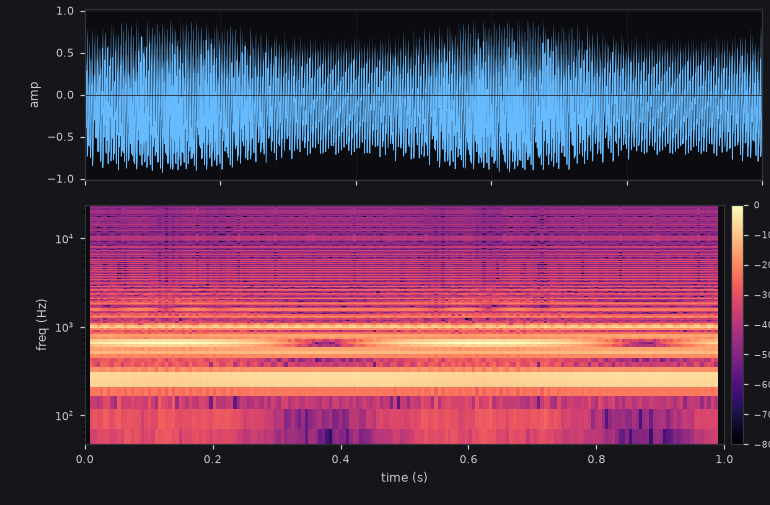

attenumix (2)

mix

peak 0.926 (-0.7 dBFS) · rms -7.3 dBFS · crest 6.6 dB · centroid 812 Hz · flat 0.001 · 1000 ms · 48000 smp

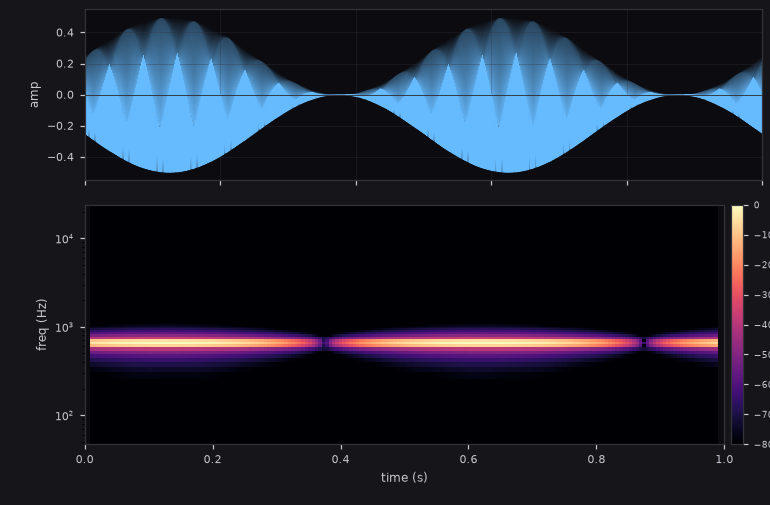

out2

peak 0.500 (-6.0 dBFS) · rms -13.3 dBFS · crest 7.3 dB · centroid 660 Hz · flat 0.000 · 1000 ms · 48000 smp

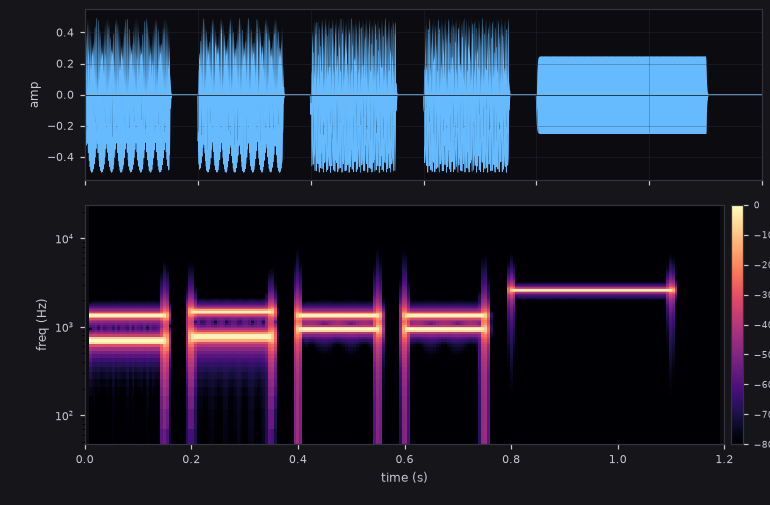

bluebox (1)

out

peak 0.500 (-6.0 dBFS) · rms -14.1 dBFS · crest 8.1 dB · centroid 1404 Hz · flat 0.000 · 1200 ms · 57600 smp

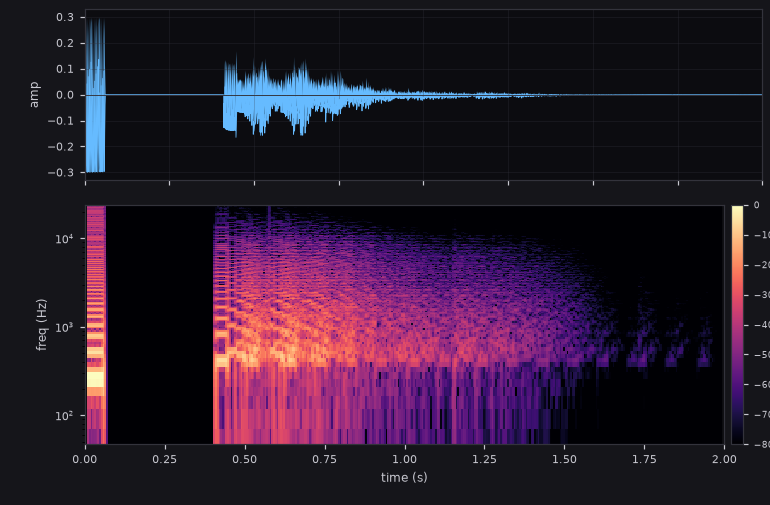

charlottes-echos (1)

L

peak 0.300 (-10.5 dBFS) · rms -28.7 dBFS · crest 18.2 dB · centroid 902 Hz · flat 0.008 · 2000 ms · 96000 smp

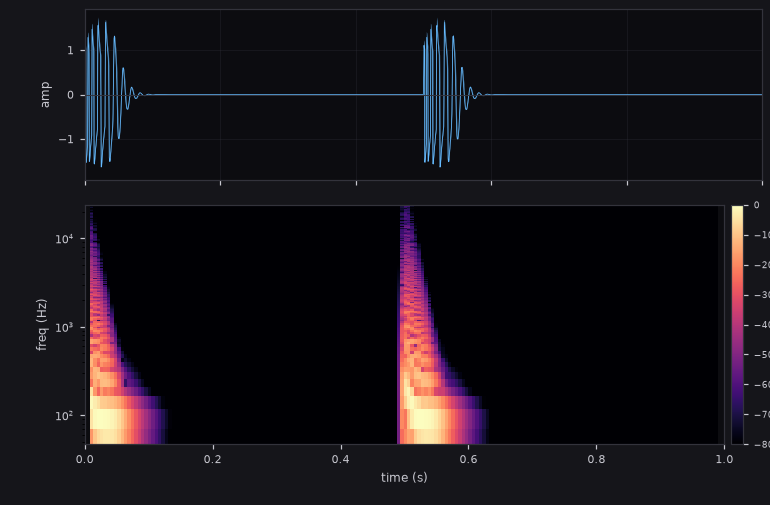

chowkick (1)

audio_out

peak 1.748 (4.9 dBFS) · rms -8.5 dBFS · crest 13.4 dB · centroid 179 Hz · flat 0.000 · 1000 ms · 48000 smp

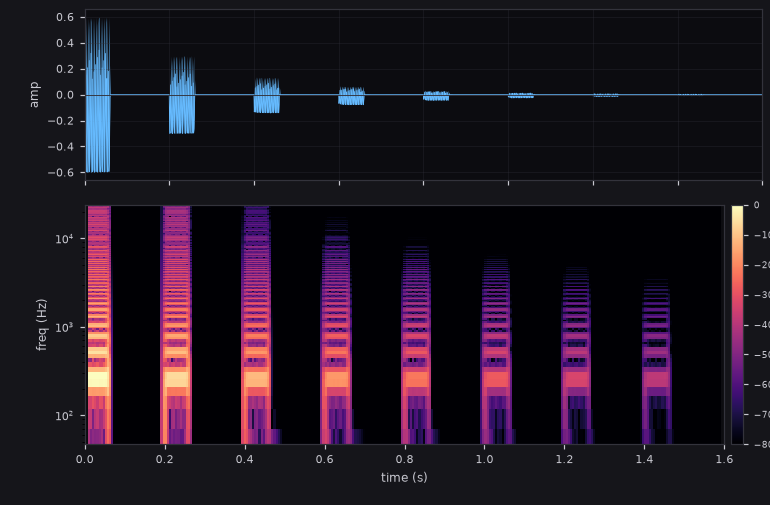

cofefve (1)

out

peak 0.600 (-4.4 dBFS) · rms -22.3 dBFS · crest 17.8 dB · centroid 863 Hz · flat 0.005 · 1600 ms · 76800 smp

cube (16)

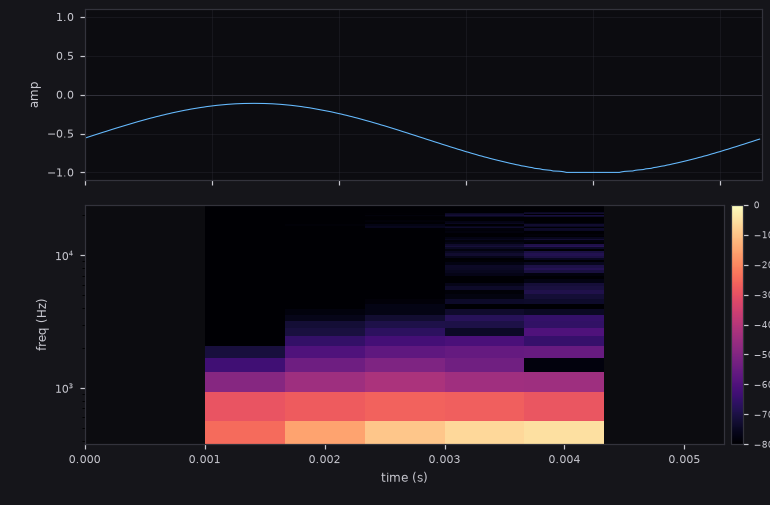

axis-aligned

peak 1.000 (0.0 dBFS) · rms -3.8 dBFS · crest 3.8 dB · centroid 188 Hz · flat 0.000 · 5 ms · 256 smp

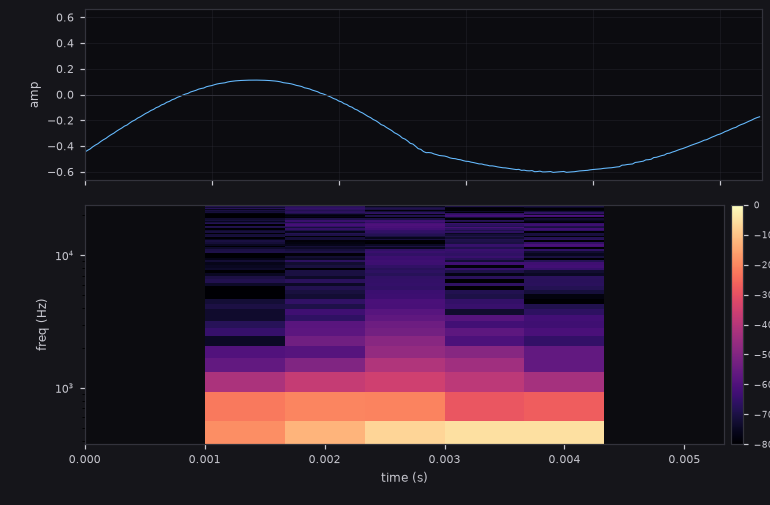

connect-strength-circle

peak 0.604 (-4.4 dBFS) · rms -8.5 dBFS · crest 4.1 dB · centroid 251 Hz · flat 0.005 · 5 ms · 256 smp

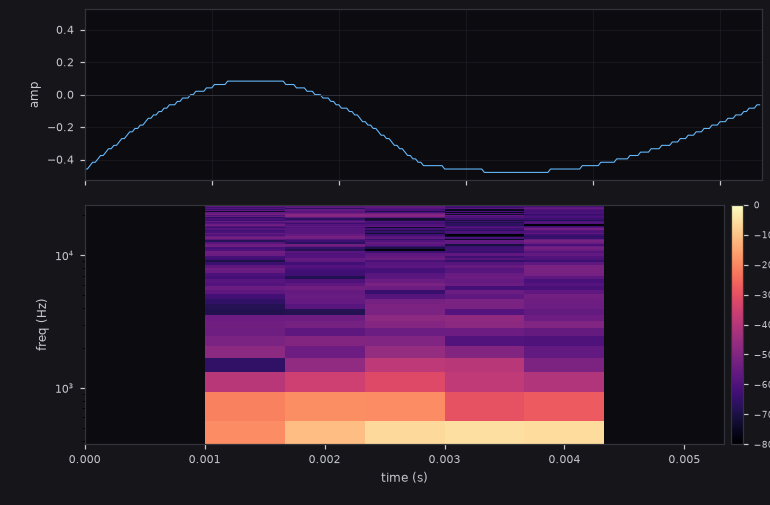

connect-strength-hard

peak 0.479 (-6.4 dBFS) · rms -10.2 dBFS · crest 3.8 dB · centroid 393 Hz · flat 0.016 · 5 ms · 256 smp

connect-strength-vee

peak 0.663 (-3.6 dBFS) · rms -7.3 dBFS · crest 3.7 dB · centroid 267 Hz · flat 0.007 · 5 ms · 256 smp

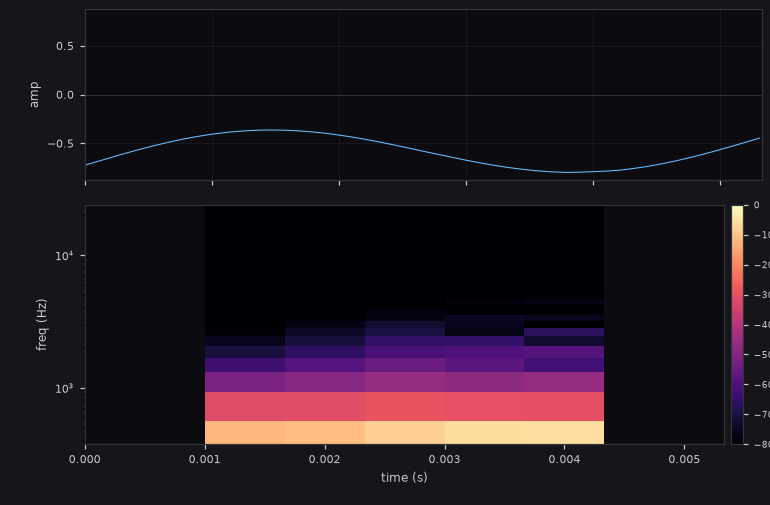

connect-vee

peak 0.796 (-2.0 dBFS) · rms -4.5 dBFS · crest 2.5 dB · centroid 345 Hz · flat 0.014 · 5 ms · 256 smp

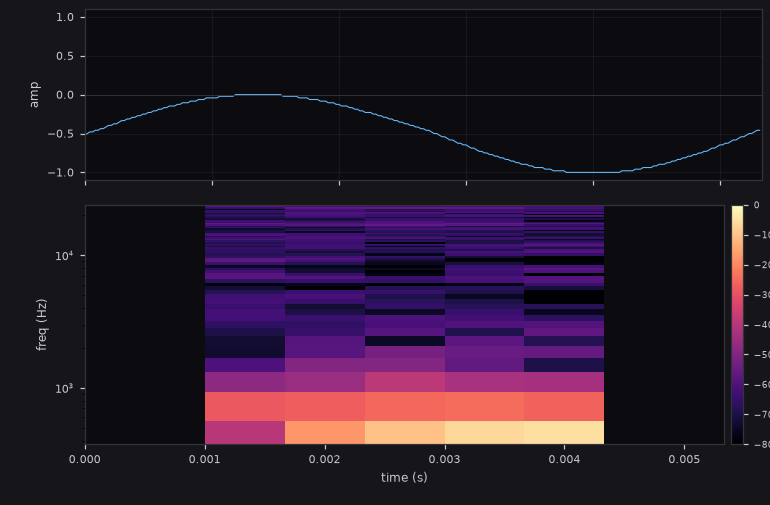

hard-material

peak 1.000 (0.0 dBFS) · rms -4.4 dBFS · crest 4.4 dB · centroid 194 Hz · flat 0.000 · 5 ms · 256 smp

morph-ceiling

peak 0.560 (-5.0 dBFS) · rms -10.7 dBFS · crest 5.7 dB · centroid 875 Hz · flat 0.059 · 5 ms · 256 smp

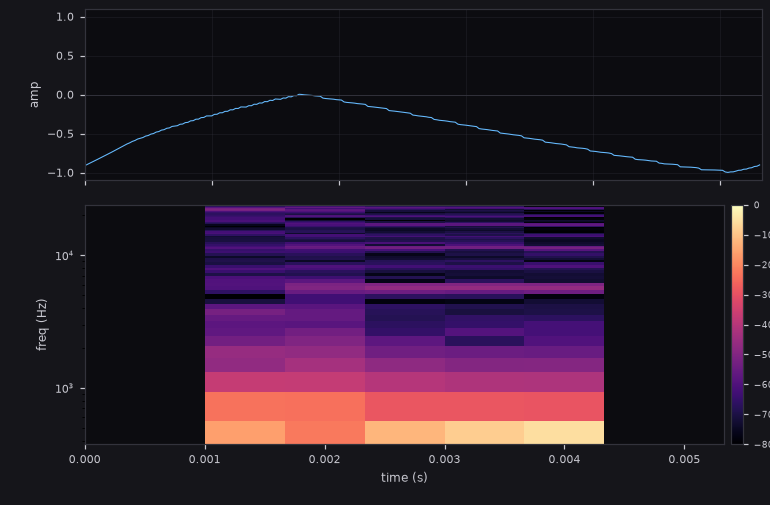

rotated

peak 0.996 (-0.0 dBFS) · rms -4.8 dBFS · crest 4.7 dB · centroid 202 Hz · flat 0.000 · 5 ms · 256 smp

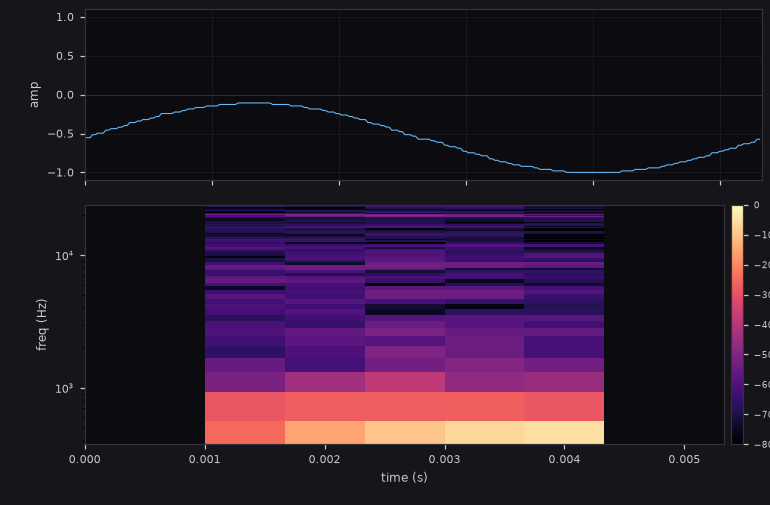

space-crush-and-crush

peak 1.000 (0.0 dBFS) · rms -3.8 dBFS · crest 3.8 dB · centroid 195 Hz · flat 0.000 · 5 ms · 256 smp

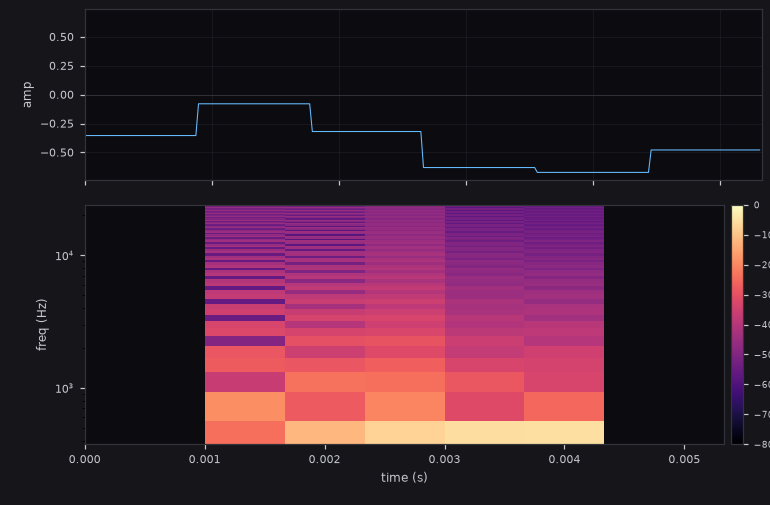

space-crush-max

peak 0.673 (-3.4 dBFS) · rms -6.6 dBFS · crest 3.1 dB · centroid 461 Hz · flat 0.011 · 5 ms · 256 smp

space-crush-mid

peak 0.684 (-3.3 dBFS) · rms -6.9 dBFS · crest 3.6 dB · centroid 270 Hz · flat 0.007 · 5 ms · 256 smp

space-diffuse-mid

peak 0.558 (-5.1 dBFS) · rms -9.6 dBFS · crest 4.5 dB · centroid 273 Hz · flat 0.008 · 5 ms · 256 smp

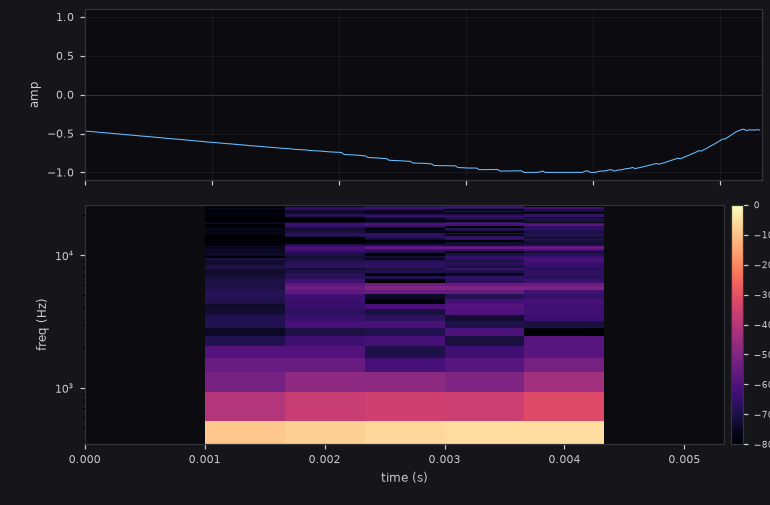

space-diffuse-rotated

peak 1.000 (0.0 dBFS) · rms -2.1 dBFS · crest 2.1 dB · centroid 229 Hz · flat 0.000 · 5 ms · 256 smp

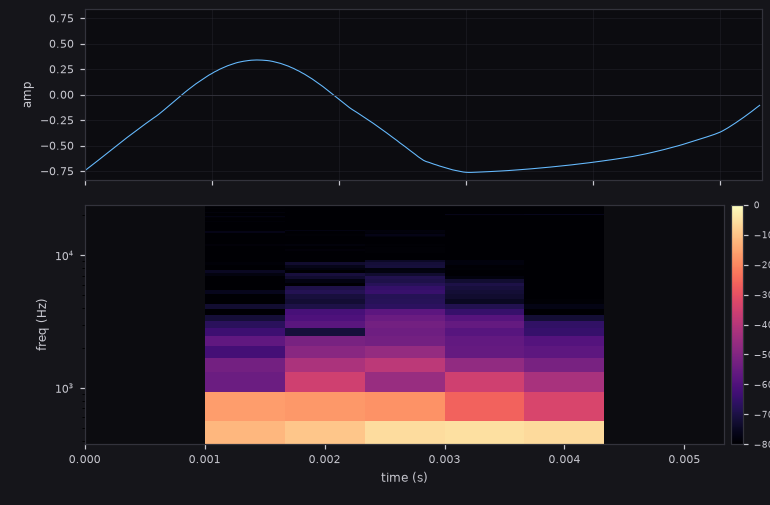

space-diffuse-wrap

peak 0.763 (-2.4 dBFS) · rms -6.0 dBFS · crest 3.7 dB · centroid 348 Hz · flat 0.013 · 5 ms · 256 smp

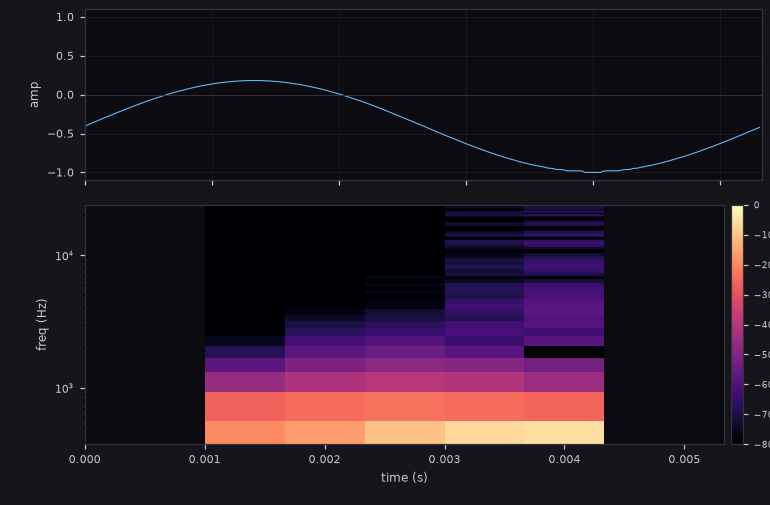

spread-right

peak 1.000 (0.0 dBFS) · rms -4.7 dBFS · crest 4.7 dB · centroid 188 Hz · flat 0.000 · 5 ms · 256 smp

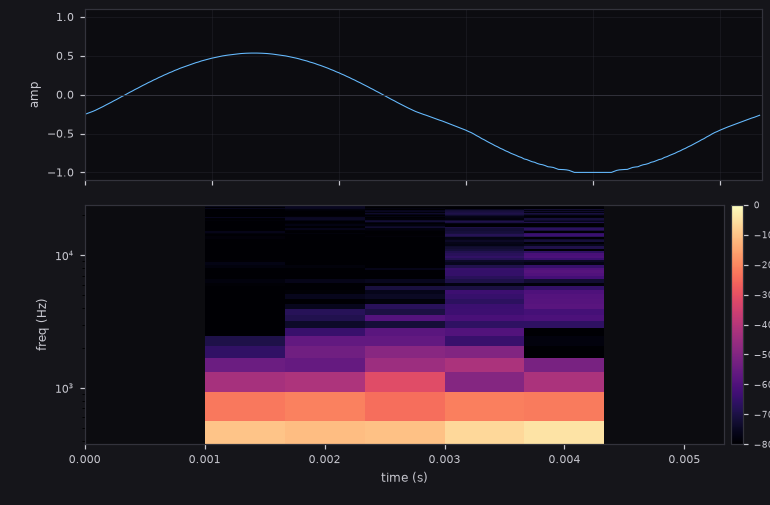

wrap-outside

peak 1.000 (0.0 dBFS) · rms -4.8 dBFS · crest 4.8 dB · centroid 189 Hz · flat 0.000 · 5 ms · 256 smp

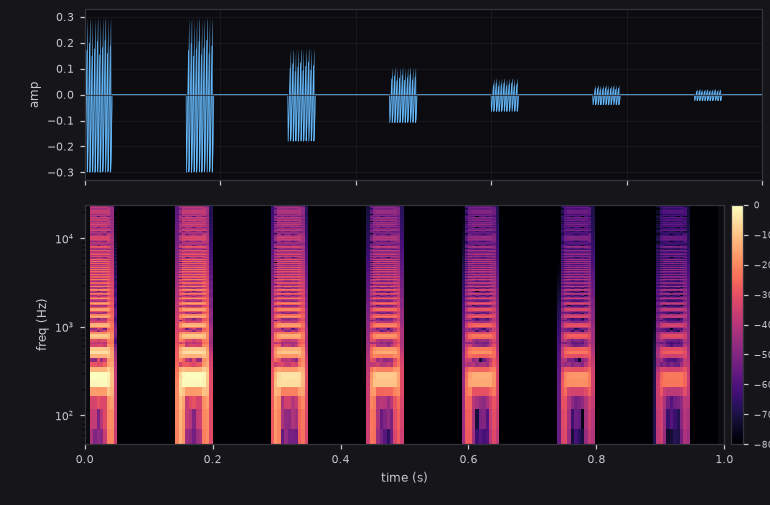

delay (1)

audio

peak 0.300 (-10.5 dBFS) · rms -25.1 dBFS · crest 14.7 dB · centroid 879 Hz · flat 0.004 · 1000 ms · 48000 smp

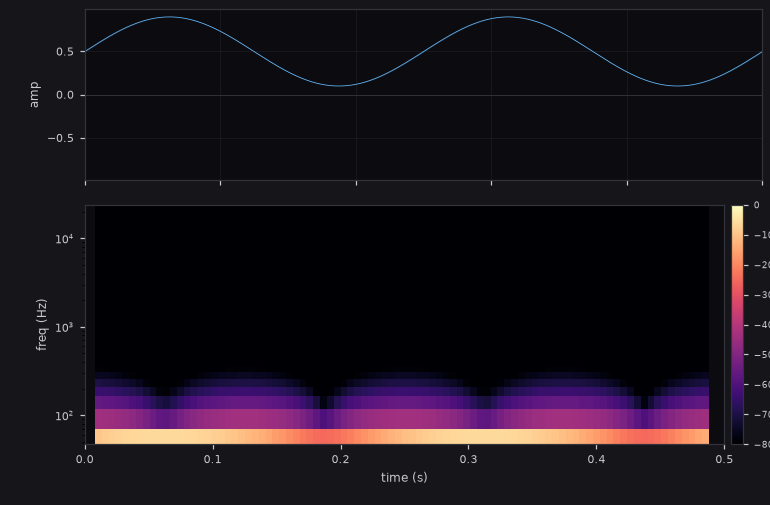

depolarizer (1)

out

peak 0.900 (-0.9 dBFS) · rms -4.8 dBFS · crest 3.9 dB · centroid 4 Hz · flat 0.000 · 500 ms · 24000 smp

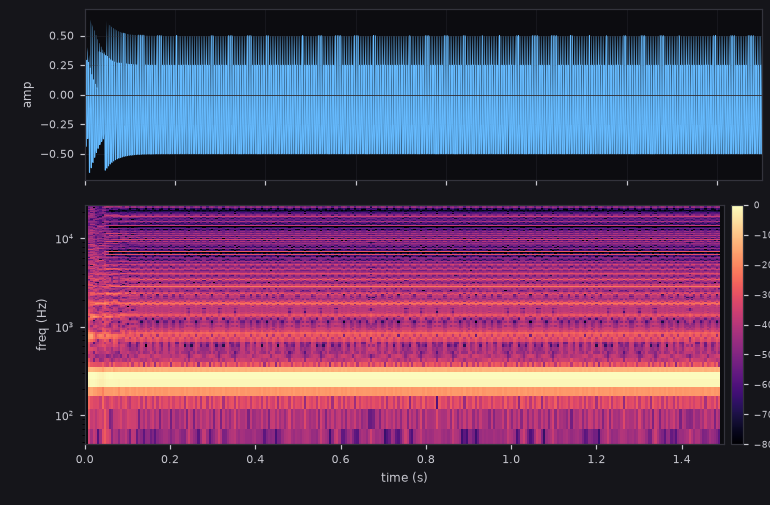

destroy (1)

audio

peak 0.657 (-3.6 dBFS) · rms -8.6 dBFS · crest 4.9 dB · centroid 413 Hz · flat 0.001 · 1500 ms · 72000 smp

featurecv (4)

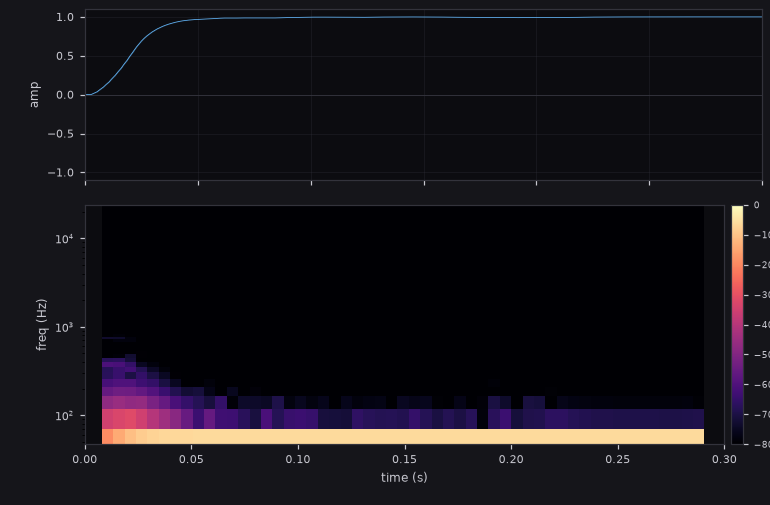

noise-bright

peak 1.000 (-0.0 dBFS) · rms -0.5 dBFS · crest 0.5 dB · centroid 37 Hz · flat 0.002 · 300 ms · 14400 smp

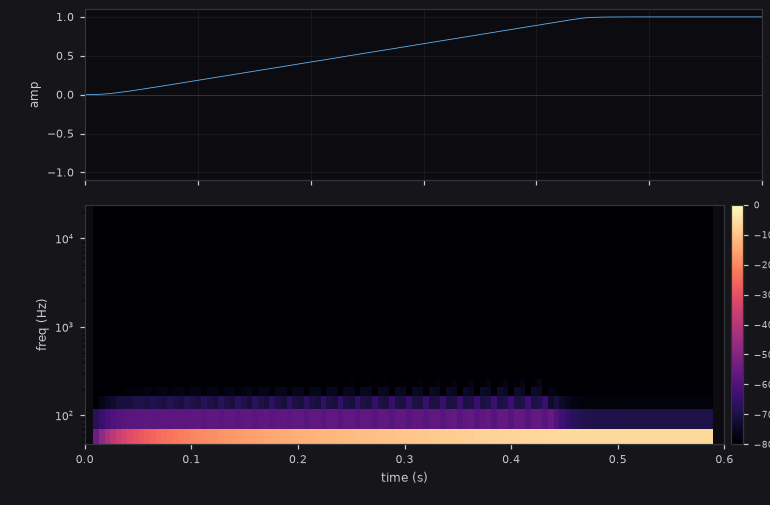

ramp-loud

peak 1.000 (0.0 dBFS) · rms -3.1 dBFS · crest 3.1 dB · centroid 8 Hz · flat 0.000 · 600 ms · 28800 smp

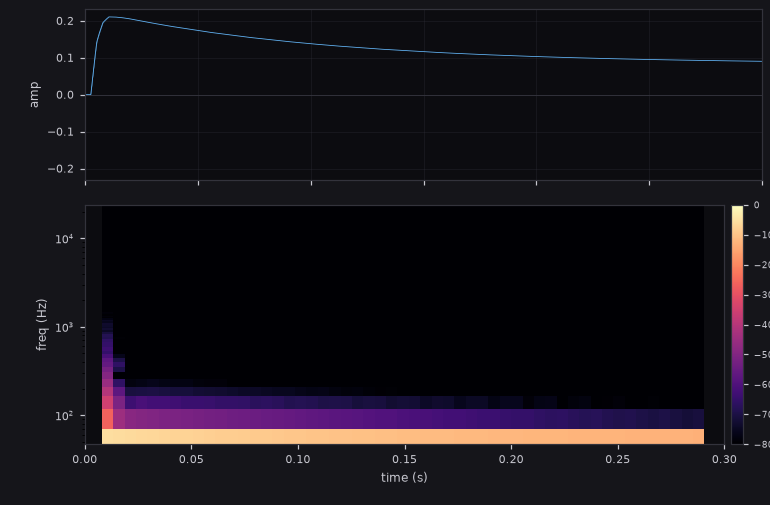

sine-punch

peak 0.211 (-13.5 dBFS) · rms -17.6 dBFS · crest 4.1 dB · centroid 19 Hz · flat 0.000 · 300 ms · 14400 smp

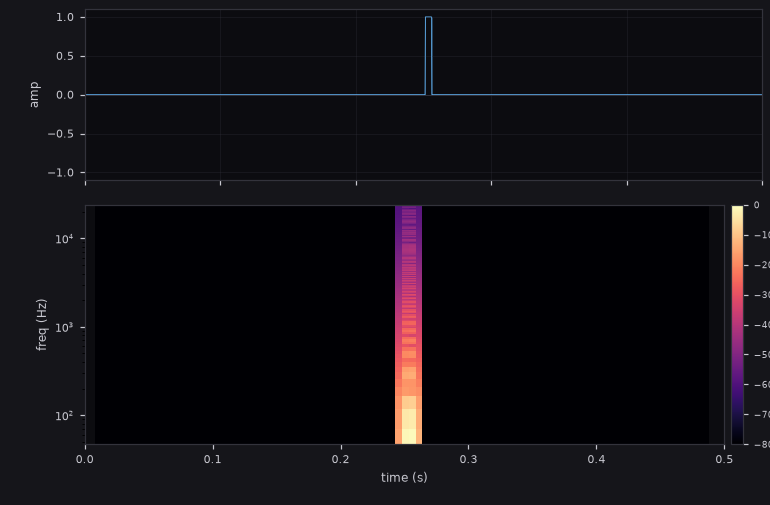

transient-onset

peak 1.000 (0.0 dBFS) · rms -20.0 dBFS · crest 20.0 dB · centroid 159 Hz · flat 0.003 · 500 ms · 24000 smp

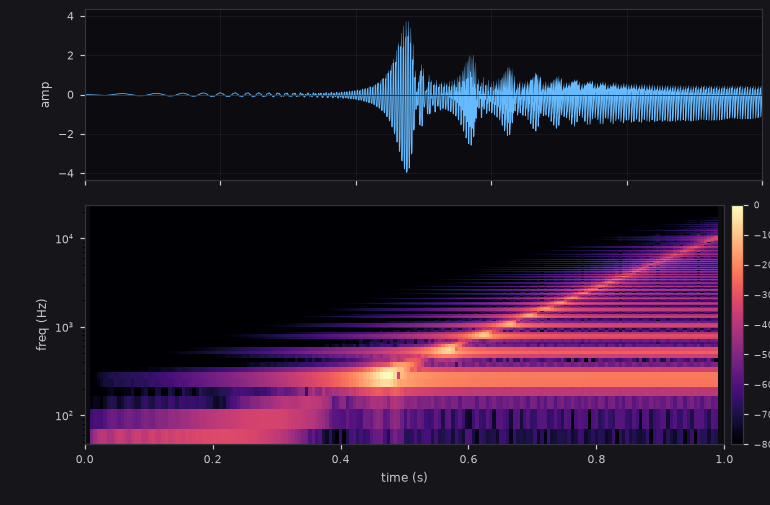

filter (1)

audio

peak 3.958 (11.9 dBFS) · rms -4.8 dBFS · crest 16.7 dB · centroid 642 Hz · flat 0.000 · 1000 ms · 48000 smp

flipper (2)

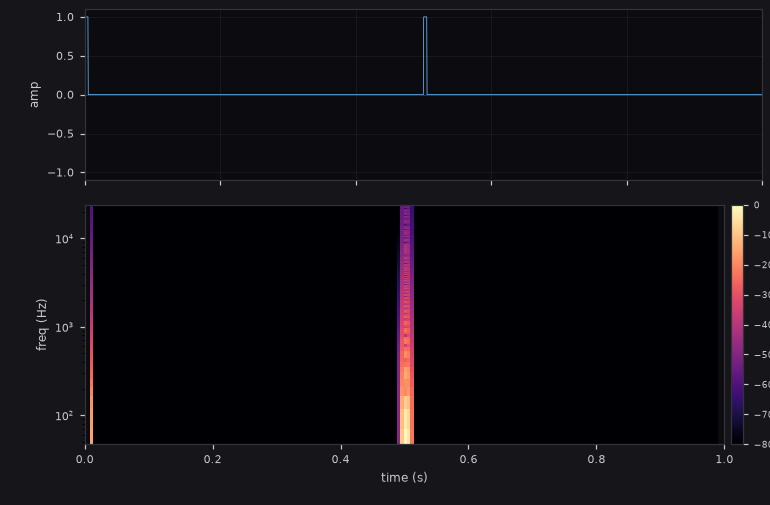

flip

peak 1.000 (0.0 dBFS) · rms -20.0 dBFS · crest 20.0 dB · centroid 159 Hz · flat 0.000 · 1000 ms · 48000 smp

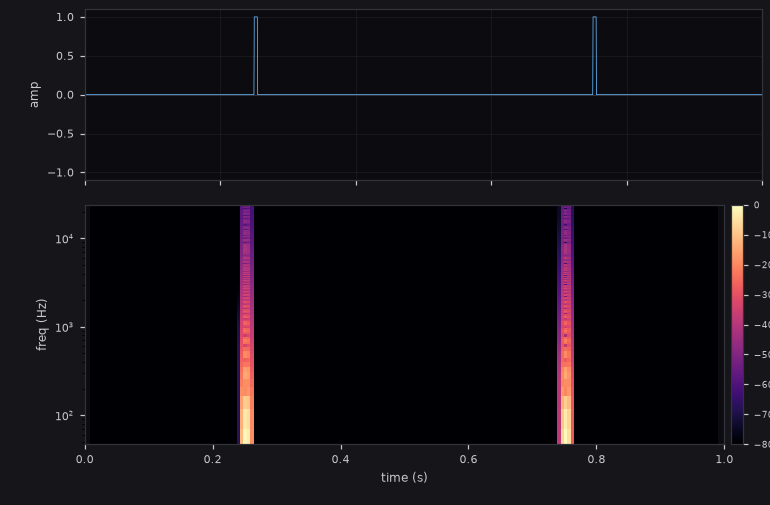

flop

peak 1.000 (0.0 dBFS) · rms -20.0 dBFS · crest 20.0 dB · centroid 159 Hz · flat 0.000 · 1000 ms · 48000 smp

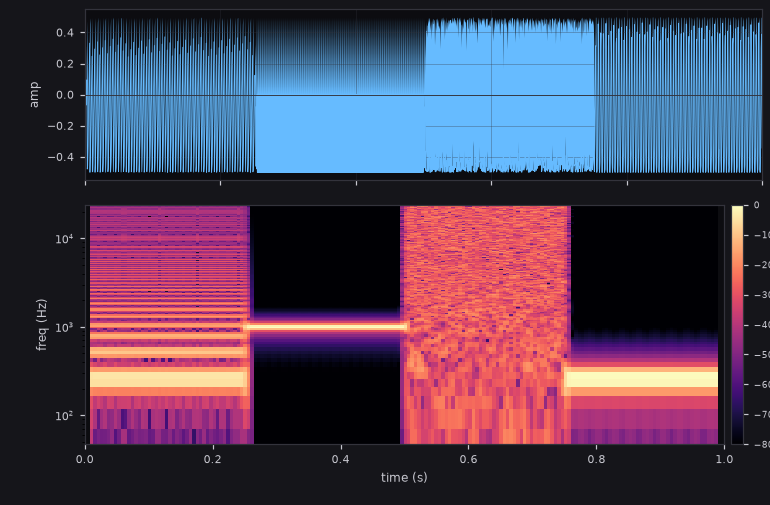

fourplexer (1)

out1

peak 0.500 (-6.0 dBFS) · rms -9.9 dBFS · crest 3.8 dB · centroid 2942 Hz · flat 0.124 · 1000 ms · 48000 smp

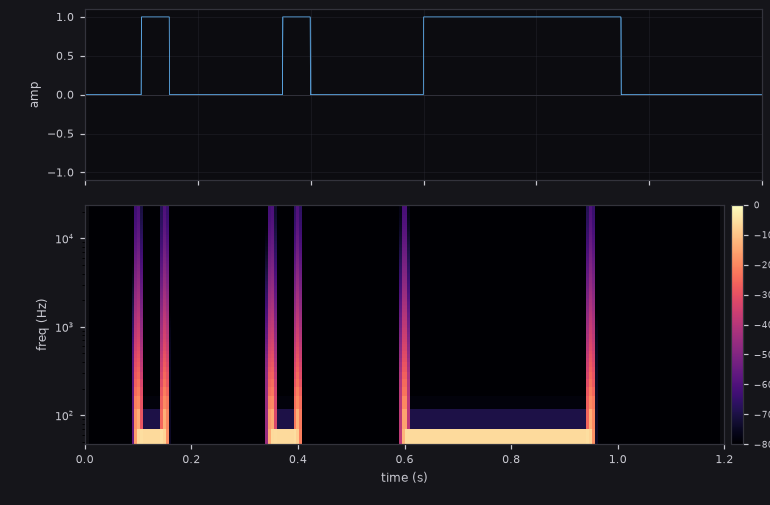

gatemaiden (2)

gate

peak 1.000 (0.0 dBFS) · rms -4.3 dBFS · crest 4.3 dB · centroid 11 Hz · flat 0.000 · 1200 ms · 57600 smp

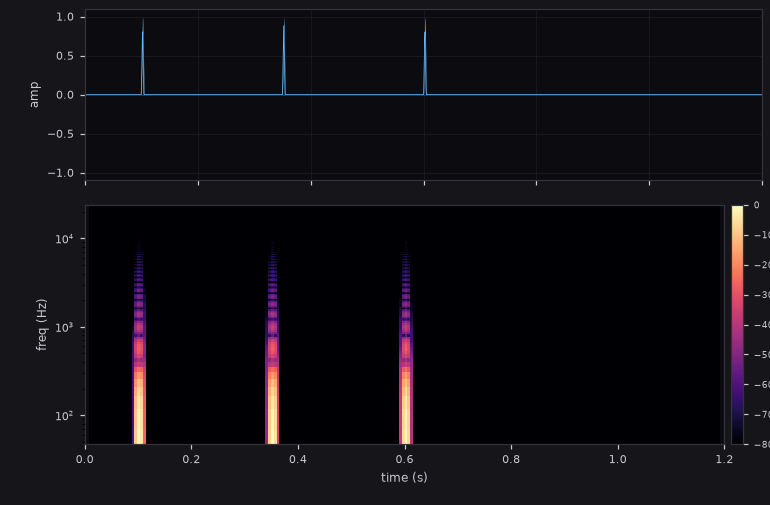

trig

peak 0.996 (-0.0 dBFS) · rms -23.8 dBFS · crest 23.8 dB · centroid 85 Hz · flat 0.000 · 1200 ms · 57600 smp

hypercube (4)

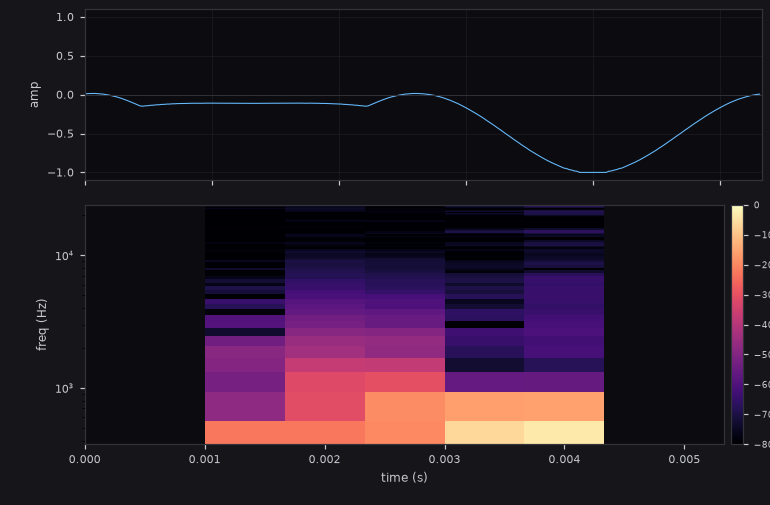

alpha-max

peak 1.000 (0.0 dBFS) · rms -7.0 dBFS · crest 7.0 dB · centroid 271 Hz · flat 0.000 · 5 ms · 256 smp

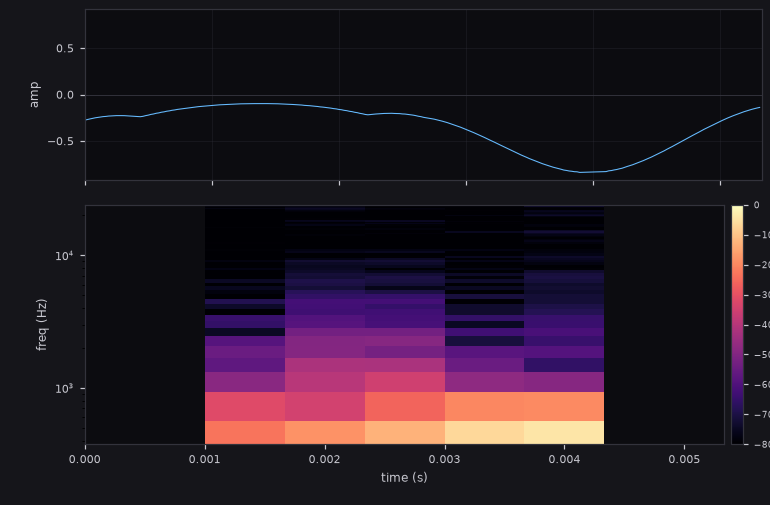

alpha-mid

peak 0.837 (-1.5 dBFS) · rms -7.3 dBFS · crest 5.8 dB · centroid 235 Hz · flat 0.001 · 5 ms · 256 smp

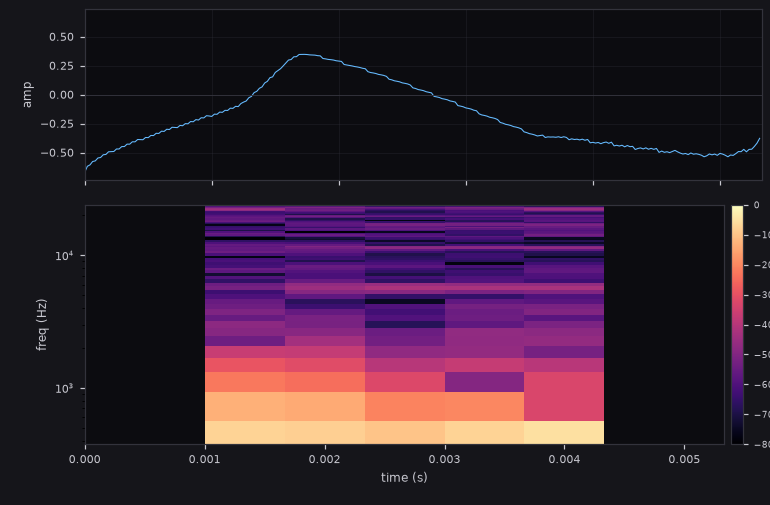

alpha-rotated

peak 0.671 (-3.5 dBFS) · rms -9.2 dBFS · crest 5.8 dB · centroid 251 Hz · flat 0.004 · 5 ms · 256 smp

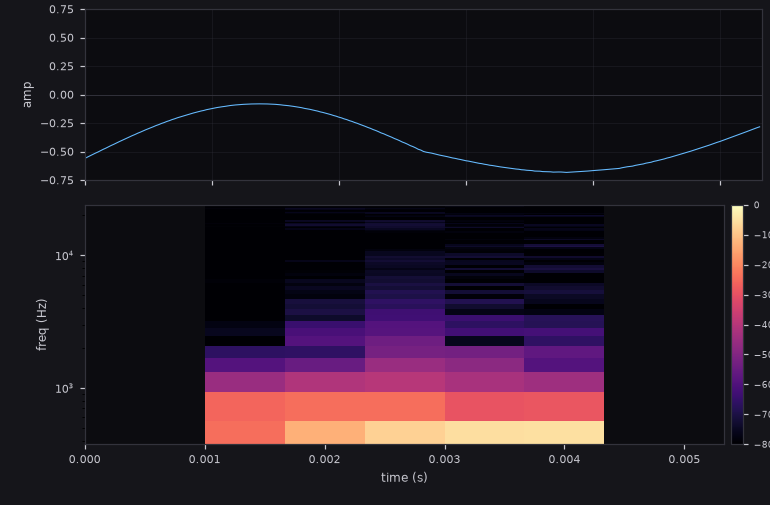

alpha-zero

peak 0.682 (-3.3 dBFS) · rms -6.9 dBFS · crest 3.5 dB · centroid 273 Hz · flat 0.008 · 5 ms · 256 smp

illogic (4)

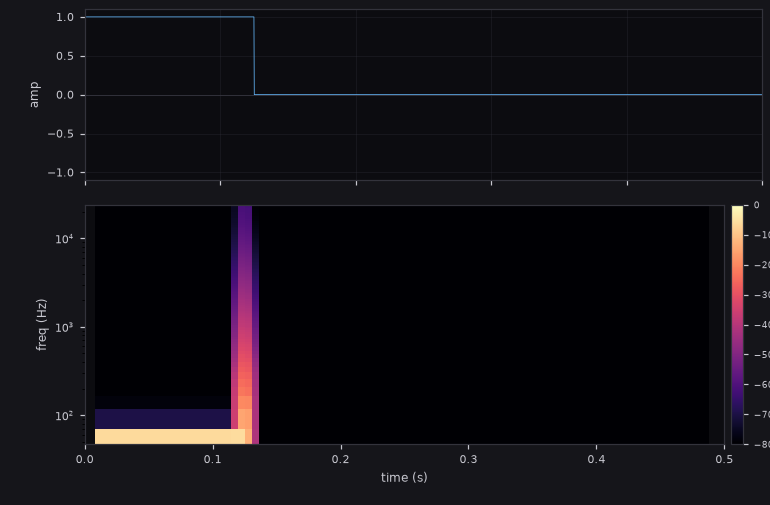

and

peak 1.000 (0.0 dBFS) · rms -6.0 dBFS · crest 6.0 dB · centroid 12 Hz · flat 0.000 · 500 ms · 24000 smp

diff

peak 1.750 (4.9 dBFS) · rms -1.9 dBFS · crest 6.7 dB · centroid 168 Hz · flat 0.000 · 500 ms · 24000 smp

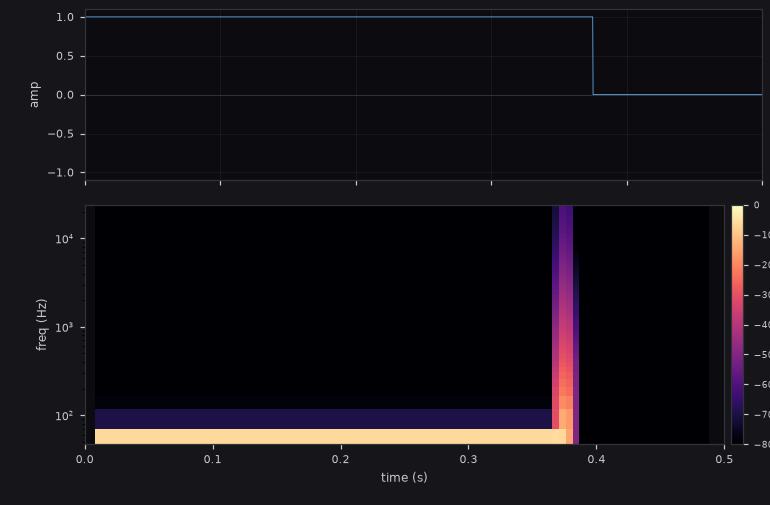

or

peak 1.000 (0.0 dBFS) · rms -1.2 dBFS · crest 1.2 dB · centroid 12 Hz · flat 0.000 · 500 ms · 24000 smp

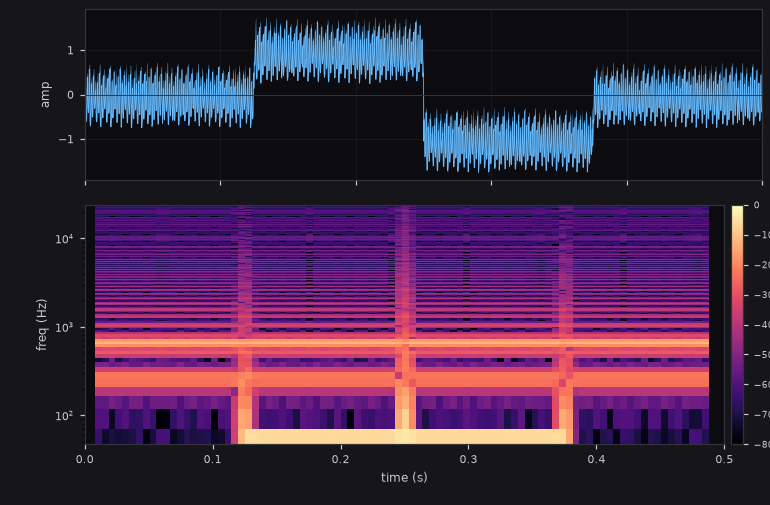

sum

peak 1.748 (4.9 dBFS) · rms -1.9 dBFS · crest 6.8 dB · centroid 165 Hz · flat 0.000 · 500 ms · 24000 smp

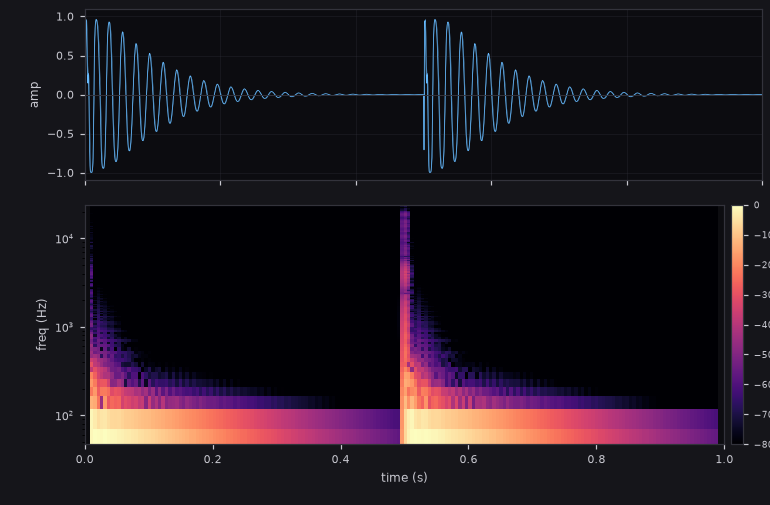

kickdrum (1)

audio_l

peak 0.995 (-0.0 dBFS) · rms -10.7 dBFS · crest 10.7 dB · centroid 64 Hz · flat 0.000 · 1000 ms · 48000 smp

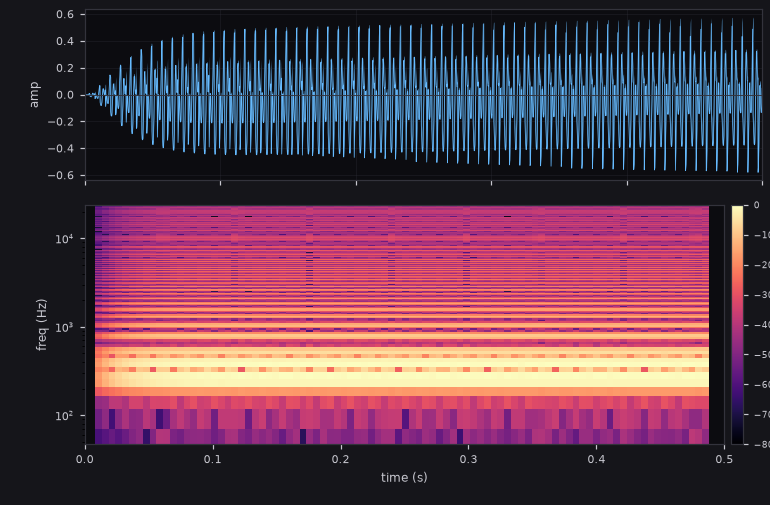

mixer (1)

audio

peak 0.579 (-4.7 dBFS) · rms -12.1 dBFS · crest 7.3 dB · centroid 711 Hz · flat 0.001 · 500 ms · 24000 smp

mixmstrs (3)

masterL

peak 0.624 (-4.1 dBFS) · rms -11.4 dBFS · crest 7.3 dB · centroid 667 Hz · flat 0.001 · 500 ms · 24000 smp

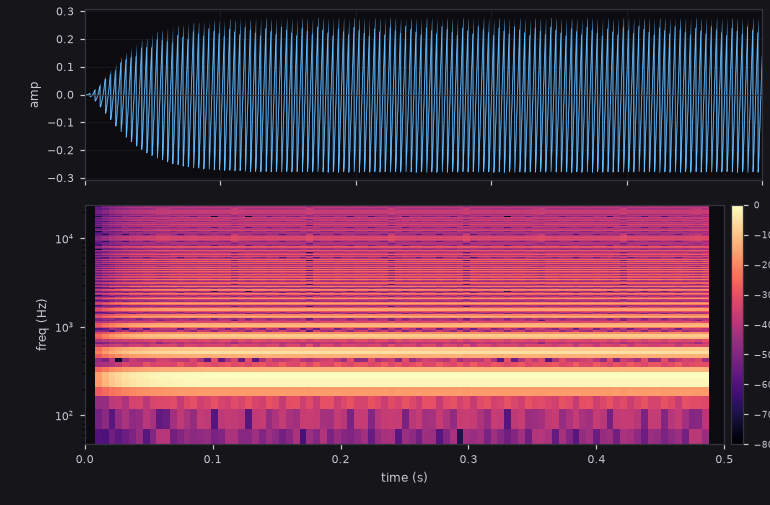

send1L

peak 0.280 (-11.1 dBFS) · rms -16.3 dBFS · crest 5.2 dB · centroid 898 Hz · flat 0.002 · 500 ms · 24000 smp

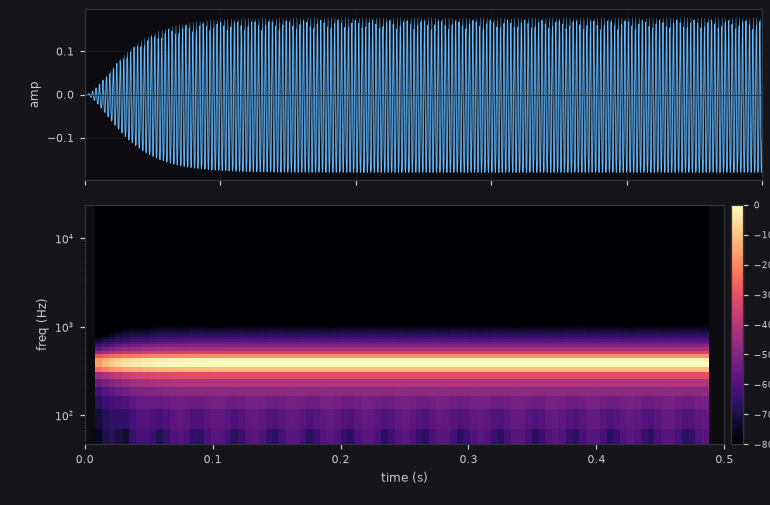

send2L

peak 0.180 (-14.9 dBFS) · rms -18.3 dBFS · crest 3.4 dB · centroid 392 Hz · flat 0.000 · 500 ms · 24000 smp

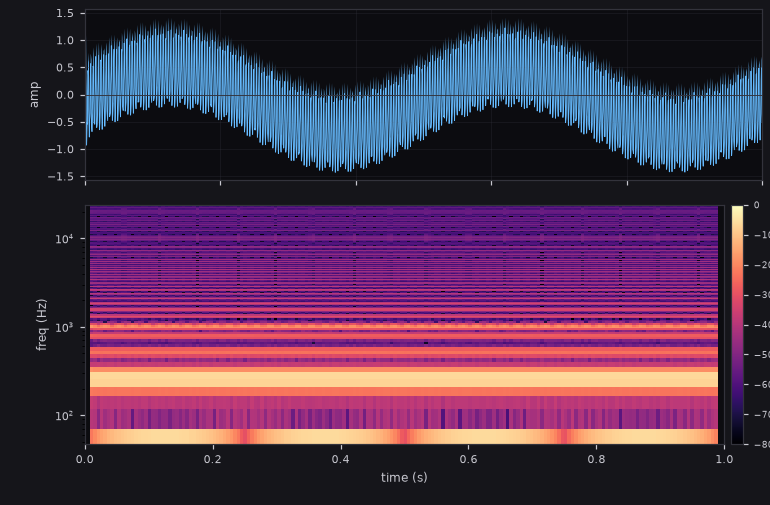

moog-cp3 (1)

out_positive

peak 1.428 (3.1 dBFS) · rms -3.9 dBFS · crest 7.0 dB · centroid 201 Hz · flat 0.000 · 1000 ms · 48000 smp

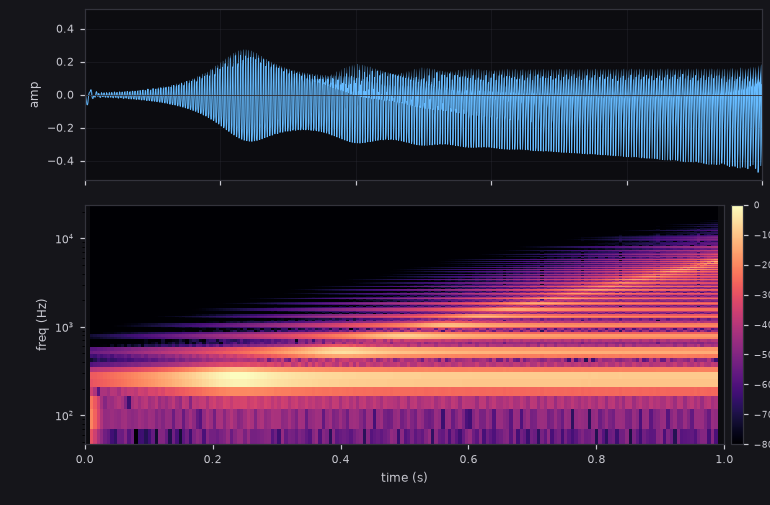

moog904a (1)

audio

peak 0.471 (-6.5 dBFS) · rms -18.7 dBFS · crest 12.2 dB · centroid 732 Hz · flat 0.000 · 1000 ms · 48000 smp

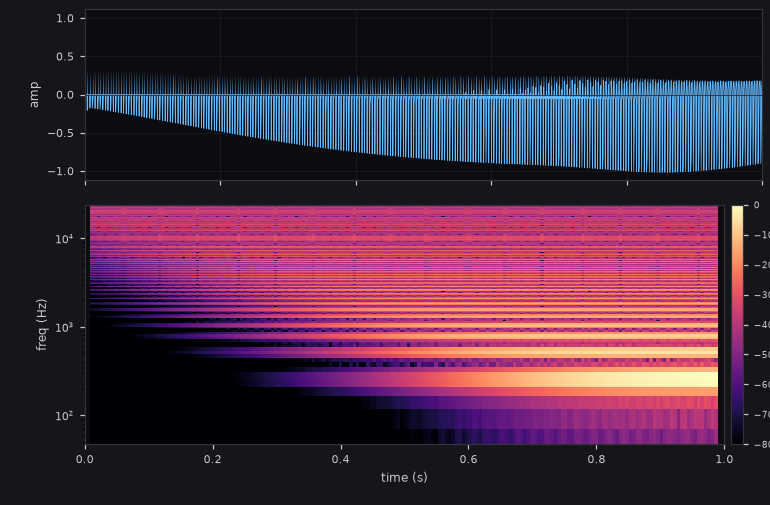

moog904b (1)

audio

peak 1.017 (0.1 dBFS) · rms -17.0 dBFS · crest 17.1 dB · centroid 2123 Hz · flat 0.005 · 1000 ms · 48000 smp

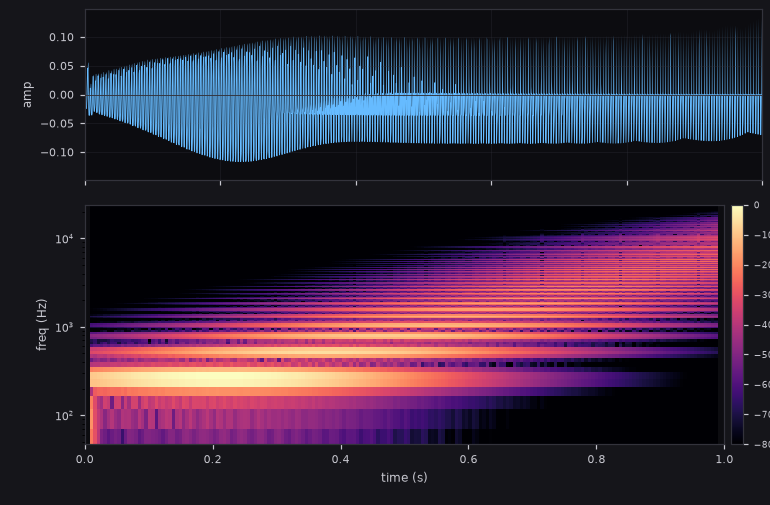

moog904c (1)

audio

peak 0.135 (-17.4 dBFS) · rms -27.9 dBFS · crest 10.6 dB · centroid 668 Hz · flat 0.000 · 1000 ms · 48000 smp

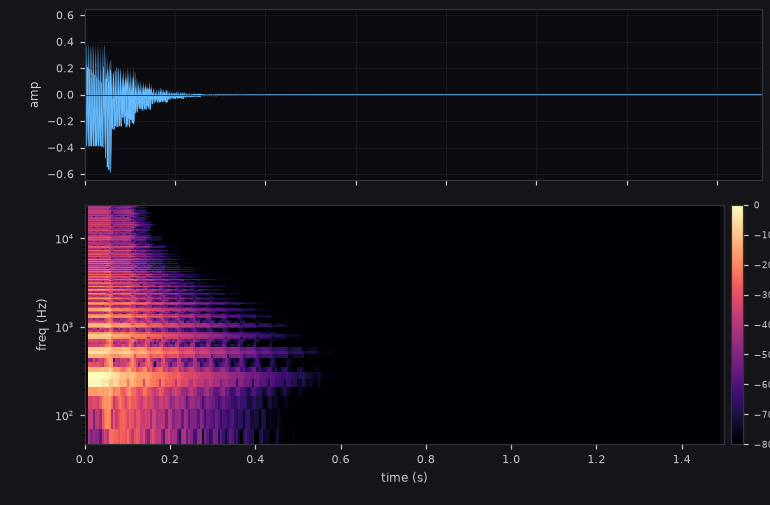

moog905 (1)

audio

peak 0.587 (-4.6 dBFS) · rms -26.1 dBFS · crest 21.5 dB · centroid 935 Hz · flat 0.006 · 1500 ms · 72000 smp

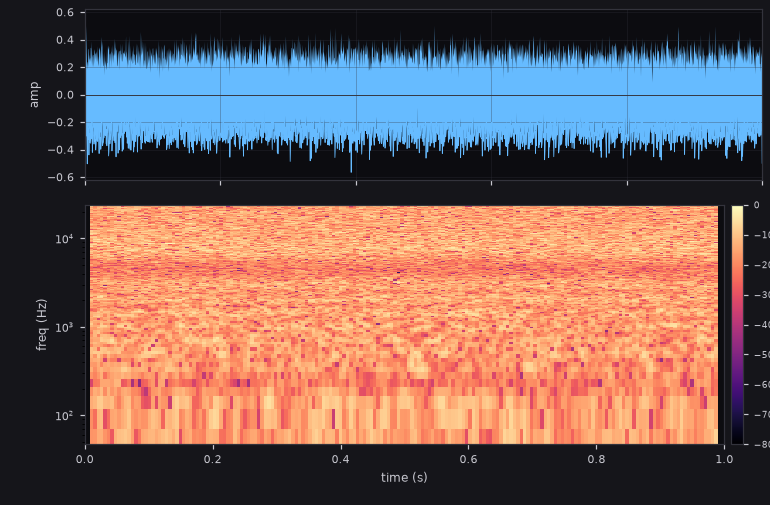

moog907a (1)

audio

peak 0.566 (-4.9 dBFS) · rms -16.2 dBFS · crest 11.3 dB · centroid 12045 Hz · flat 0.517 · 1000 ms · 48000 smp

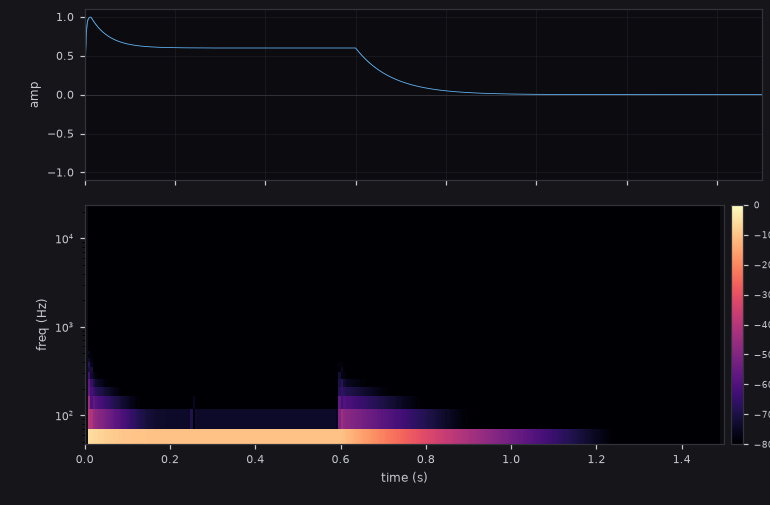

moog911 (1)

env

peak 1.000 (0.0 dBFS) · rms -7.6 dBFS · crest 7.6 dB · centroid 2 Hz · flat 0.000 · 1500 ms · 72000 smp

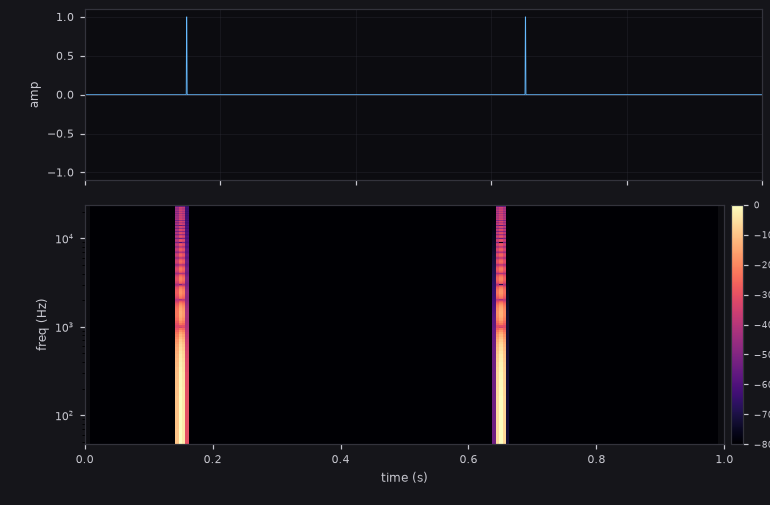

moog911a (2)

out1

peak 1.000 (0.0 dBFS) · rms -27.0 dBFS · crest 27.0 dB · centroid 624 Hz · flat 0.000 · 1000 ms · 48000 smp

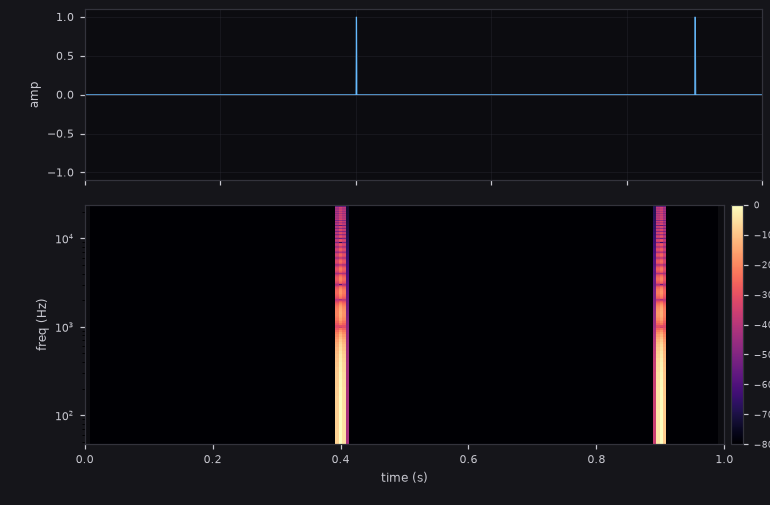

out2

peak 1.000 (0.0 dBFS) · rms -27.0 dBFS · crest 27.0 dB · centroid 624 Hz · flat 0.000 · 1000 ms · 48000 smp

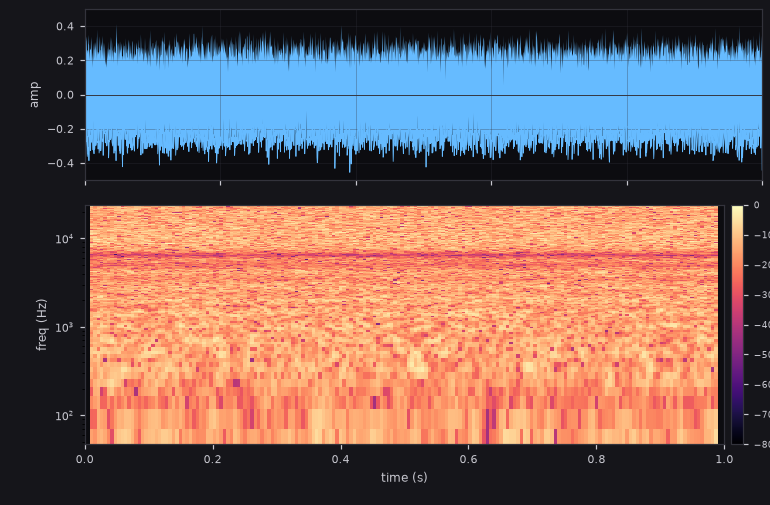

moog914 (1)

audio

peak 0.455 (-6.8 dBFS) · rms -16.7 dBFS · crest 9.8 dB · centroid 12676 Hz · flat 0.474 · 1000 ms · 48000 smp

moog921-vco (4)

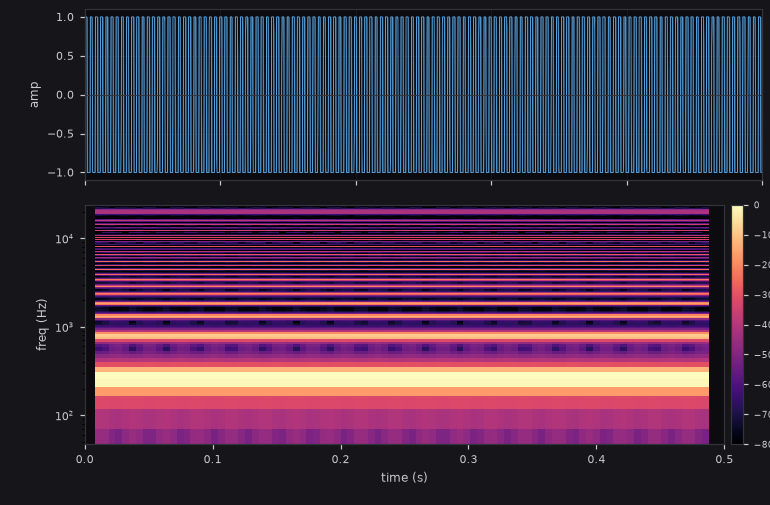

rectangular

peak 1.000 (0.0 dBFS) · rms -0.0 dBFS · crest 0.0 dB · centroid 560 Hz · flat 0.000 · 500 ms · 24000 smp

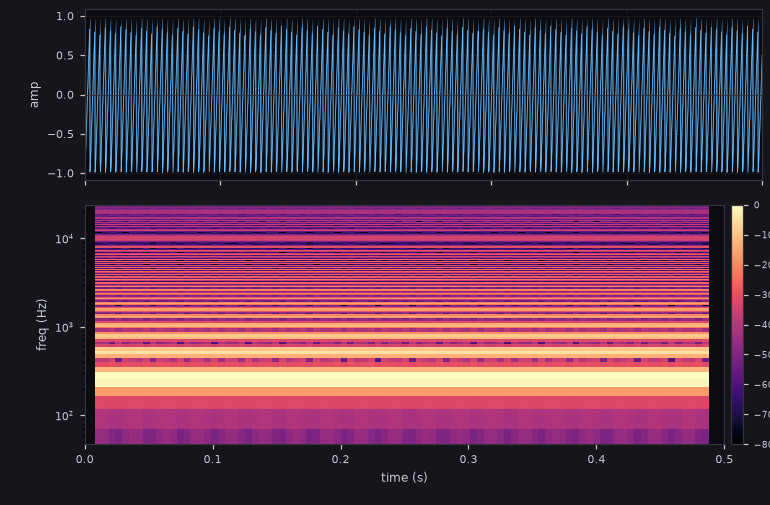

sawtooth

peak 0.989 (-0.1 dBFS) · rms -4.8 dBFS · crest 4.7 dB · centroid 731 Hz · flat 0.000 · 500 ms · 24000 smp

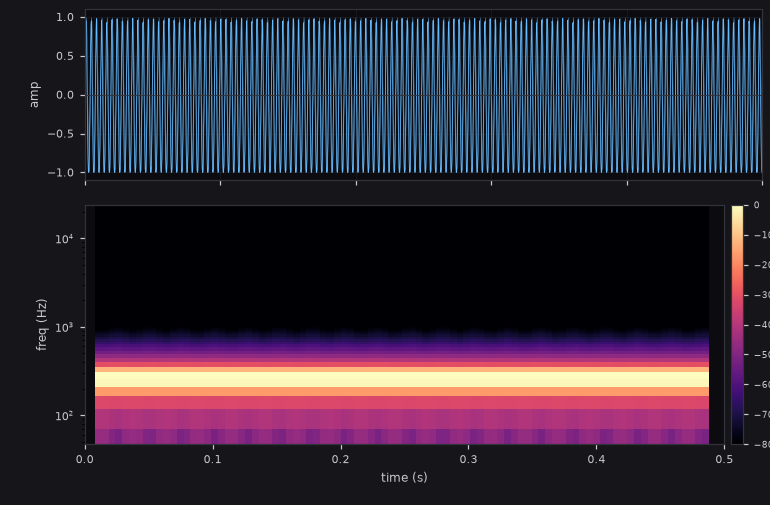

sine

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 263 Hz · flat 0.000 · 500 ms · 24000 smp

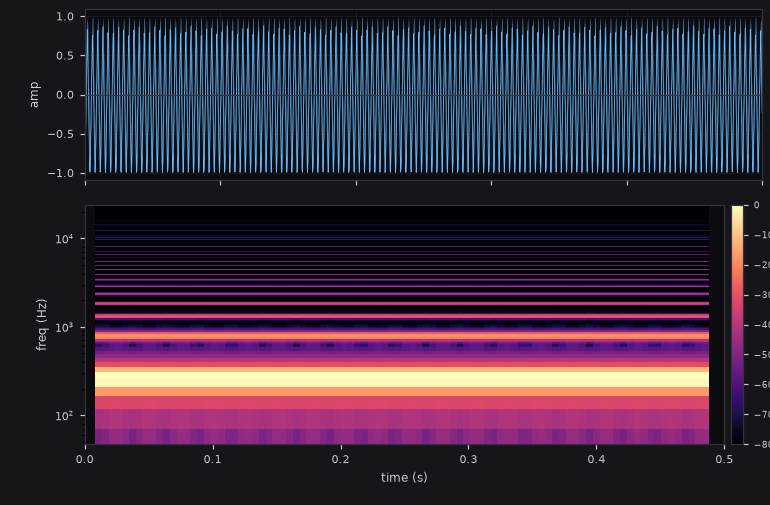

triangle

peak 0.993 (-0.1 dBFS) · rms -4.8 dBFS · crest 4.7 dB · centroid 272 Hz · flat 0.000 · 500 ms · 24000 smp

moog960 (3)

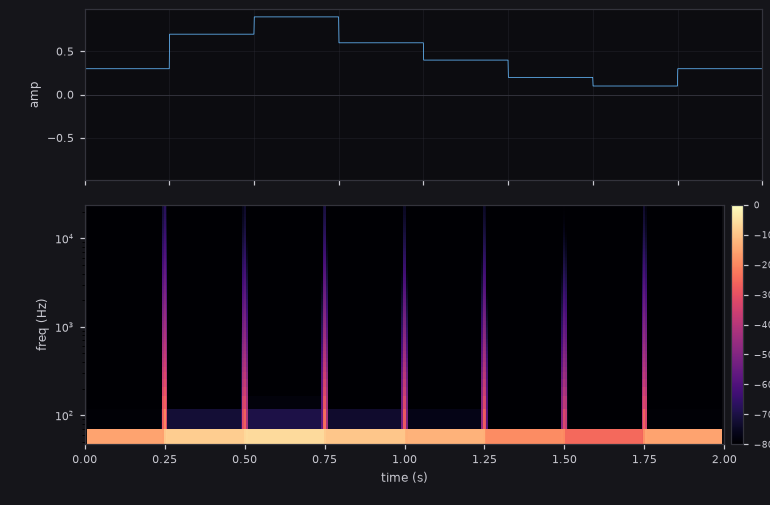

row1

peak 0.900 (-0.9 dBFS) · rms -5.9 dBFS · crest 5.0 dB · centroid 2 Hz · flat 0.000 · 2000 ms · 96000 smp

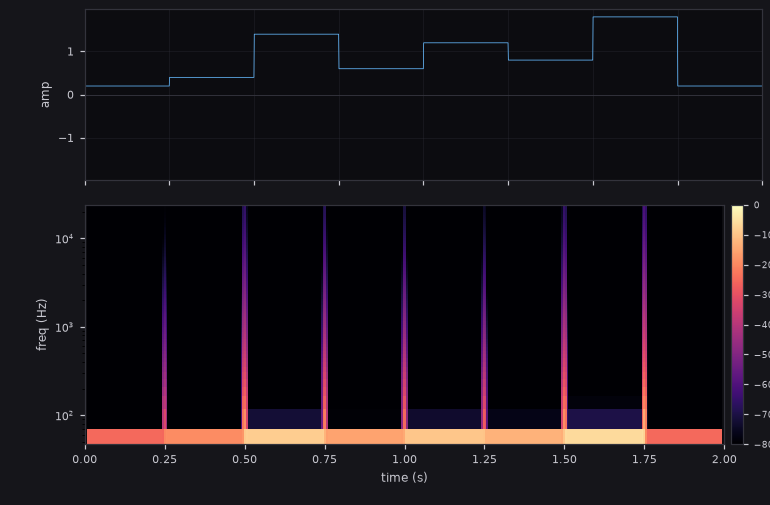

row2

peak 1.800 (5.1 dBFS) · rms -0.1 dBFS · crest 5.2 dB · centroid 6 Hz · flat 0.000 · 2000 ms · 96000 smp

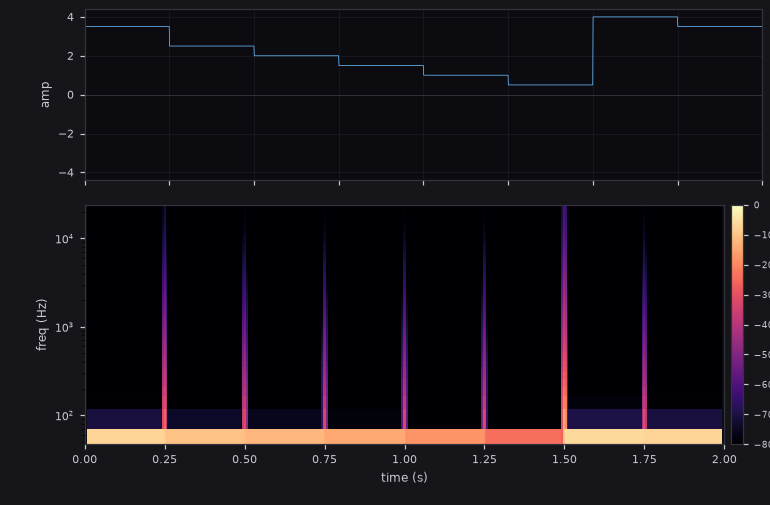

row3

peak 4.000 (12.0 dBFS) · rms 8.3 dBFS · crest 3.7 dB · centroid 3 Hz · flat 0.000 · 2000 ms · 96000 smp

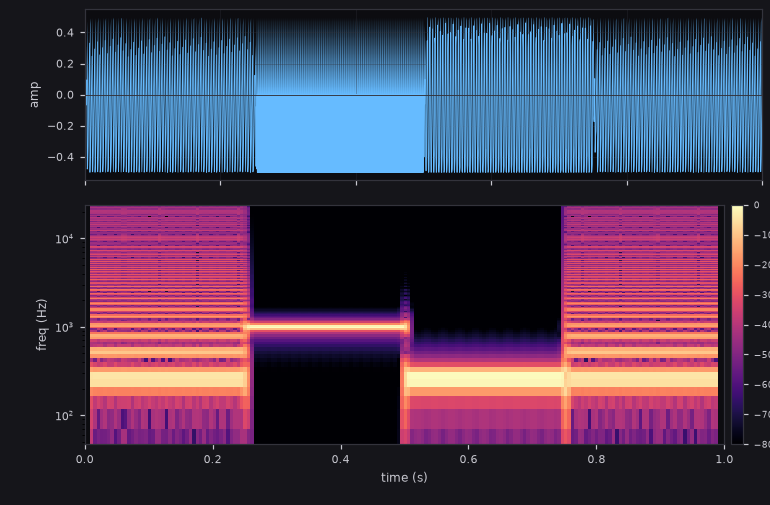

moog962 (1)

out

peak 0.500 (-6.0 dBFS) · rms -9.9 dBFS · crest 3.8 dB · centroid 738 Hz · flat 0.001 · 1000 ms · 48000 smp

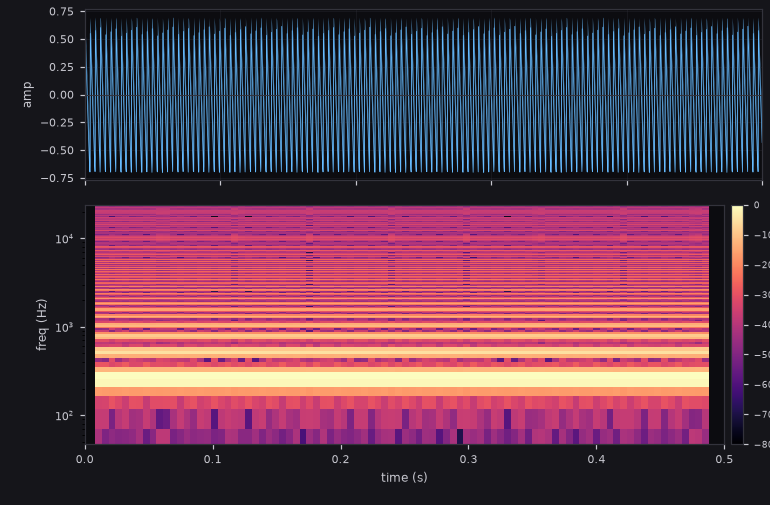

negativity (1)

out

peak 0.700 (-3.1 dBFS) · rms -7.9 dBFS · crest 4.8 dB · centroid 898 Hz · flat 0.002 · 500 ms · 24000 smp

ninelives (3)

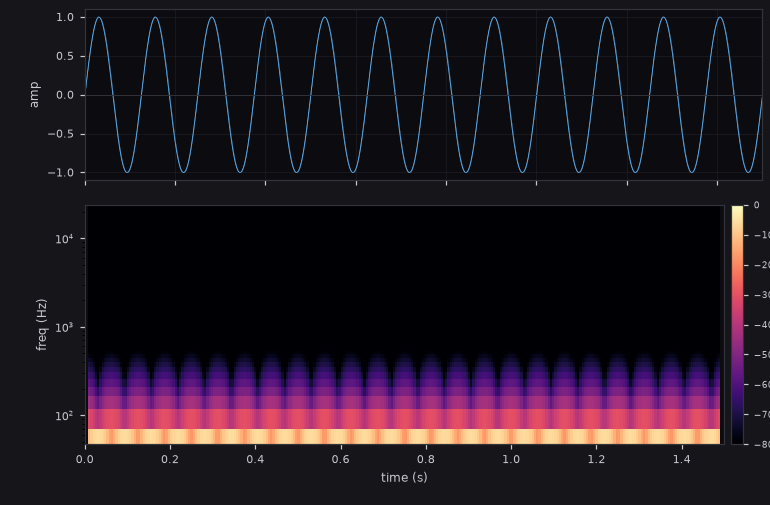

out1

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 8 Hz · flat 0.000 · 1500 ms · 72000 smp

out2

peak 1.000 (0.0 dBFS) · rms -3.0 dBFS · crest 3.0 dB · centroid 3 Hz · flat 0.000 · 1500 ms · 72000 smp

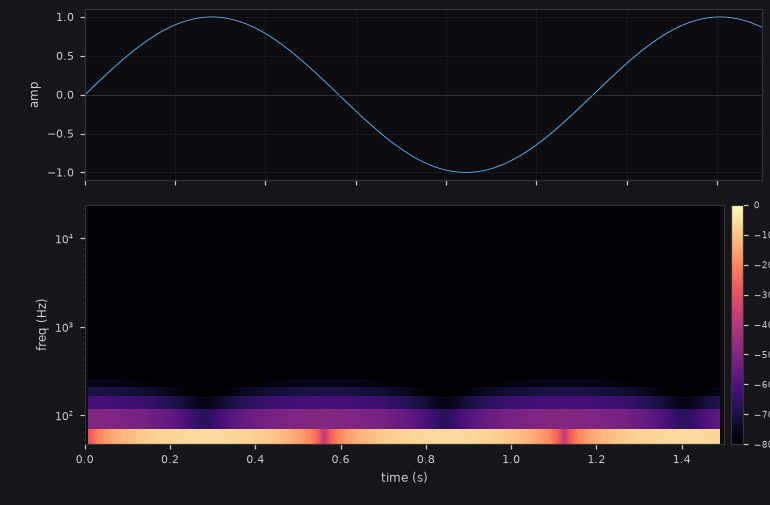

out3

peak 1.000 (0.0 dBFS) · rms -2.8 dBFS · crest 2.8 dB · centroid 1 Hz · flat 0.000 · 1500 ms · 72000 smp

noise (3)

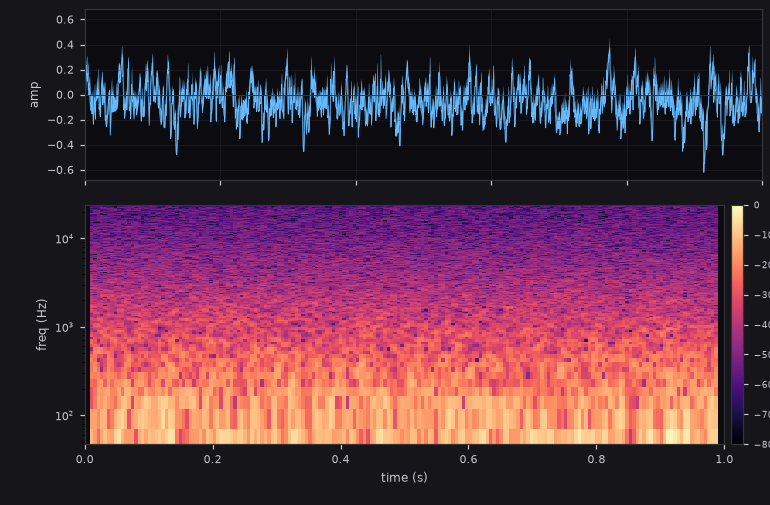

brown

peak 0.621 (-4.1 dBFS) · rms -17.4 dBFS · crest 13.3 dB · centroid 294 Hz · flat 0.010 · 1000 ms · 48000 smp

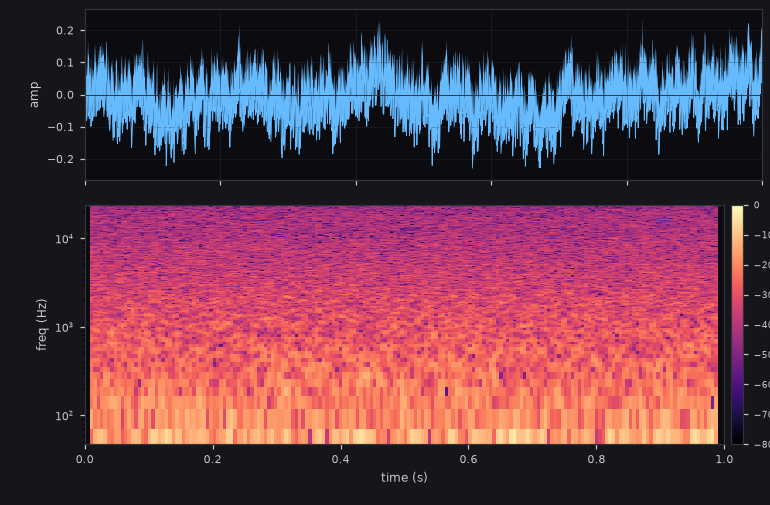

pink

peak 0.242 (-12.3 dBFS) · rms -24.0 dBFS · crest 11.7 dB · centroid 2144 Hz · flat 0.136 · 1000 ms · 48000 smp

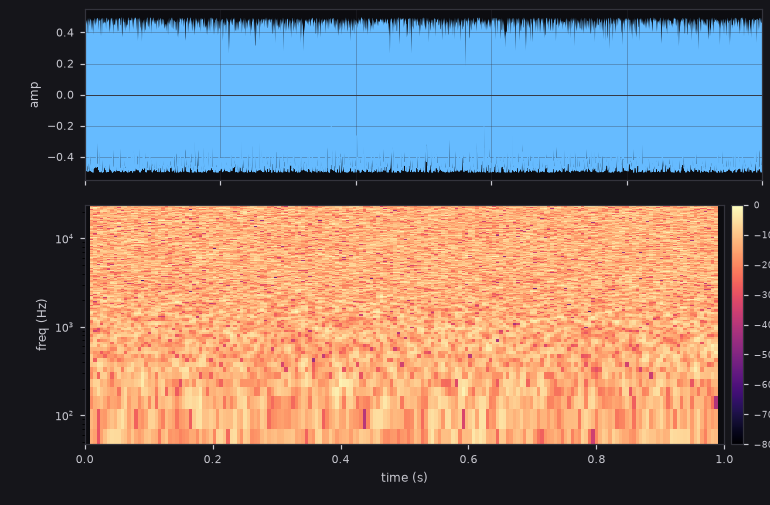

white

peak 0.500 (-6.0 dBFS) · rms -10.8 dBFS · crest 4.8 dB · centroid 12029 Hz · flat 0.565 · 1000 ms · 48000 smp

polarizer (1)

out

peak 0.800 (-1.9 dBFS) · rms -4.9 dBFS · crest 3.0 dB · centroid 4 Hz · flat 0.000 · 500 ms · 24000 smp

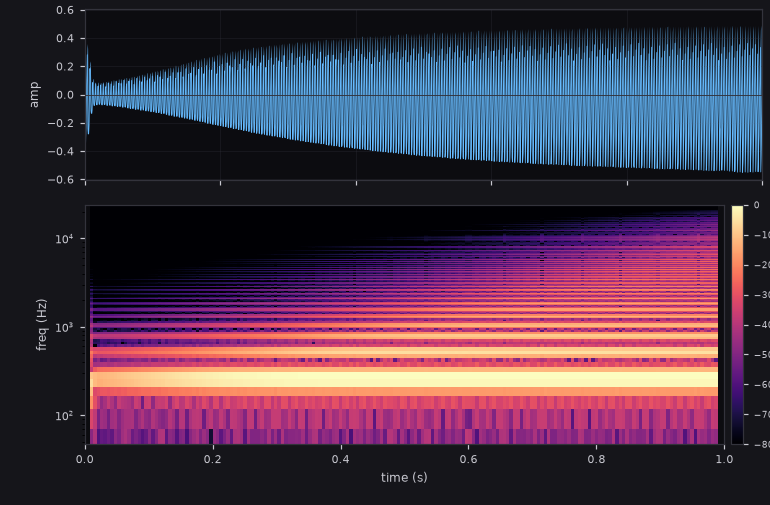

resofilter (1)

out

peak 0.550 (-5.2 dBFS) · rms -12.4 dBFS · crest 7.2 dB · centroid 442 Hz · flat 0.000 · 1000 ms · 48000 smp

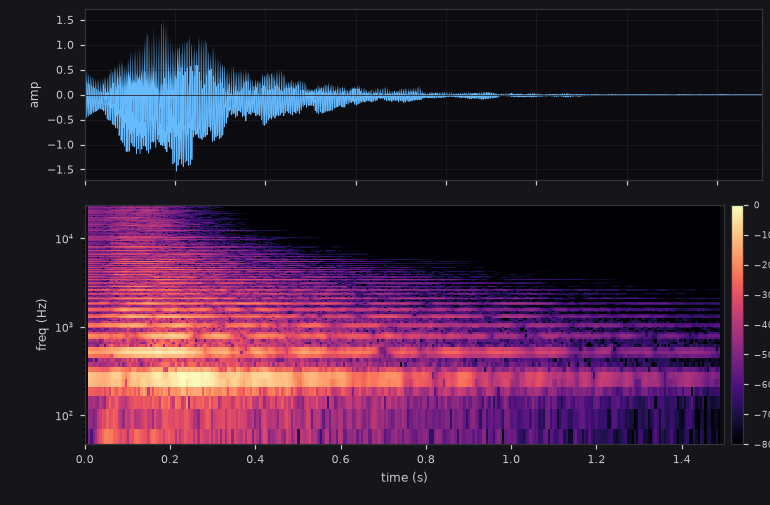

reverb (1)

audio

peak 1.559 (3.9 dBFS) · rms -13.0 dBFS · crest 16.9 dB · centroid 654 Hz · flat 0.002 · 1500 ms · 72000 smp

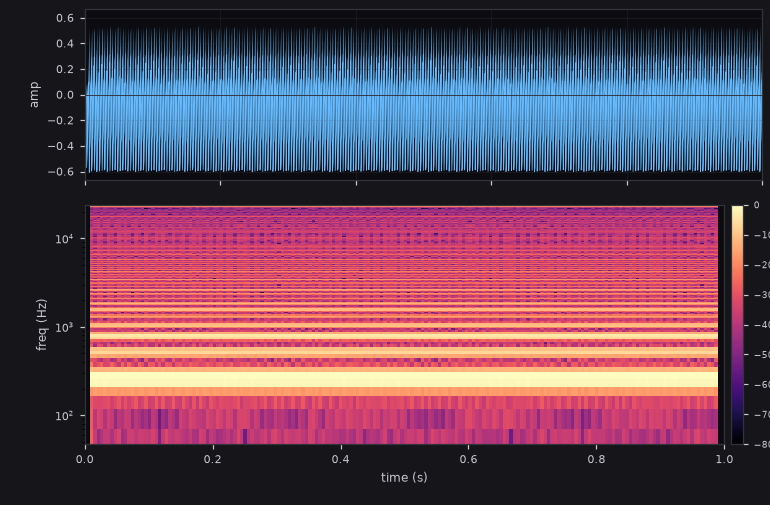

ringback (1)

out

peak 0.607 (-4.3 dBFS) · rms -11.6 dBFS · crest 7.3 dB · centroid 4563 Hz · flat 0.002 · 1000 ms · 48000 smp

sample-hold (2)

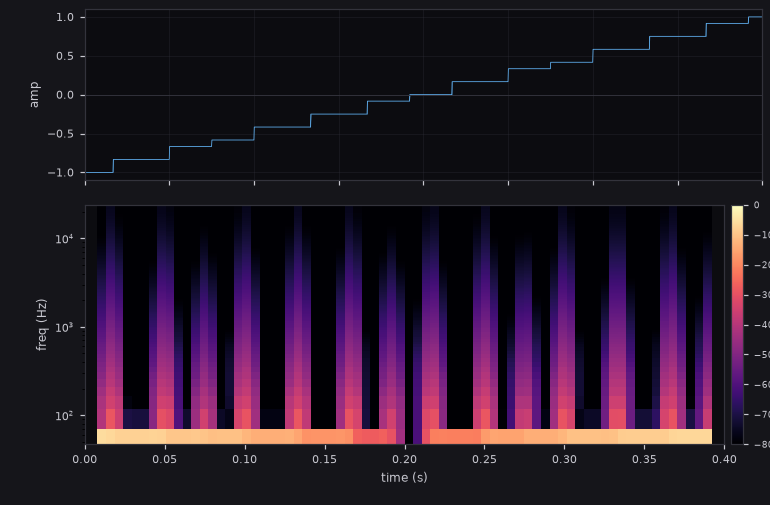

continuous-quant-curve

peak 1.000 (0.0 dBFS) · rms -4.7 dBFS · crest 4.7 dB · centroid 16 Hz · flat 0.000 · 400 ms · 19200 smp

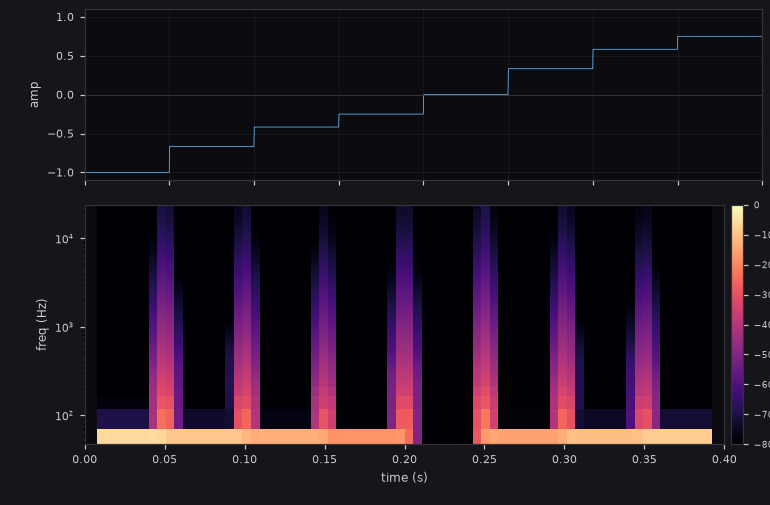

gated-quant-steps

peak 1.000 (0.0 dBFS) · rms -4.7 dBFS · crest 4.7 dB · centroid 14 Hz · flat 0.000 · 400 ms · 19200 smp

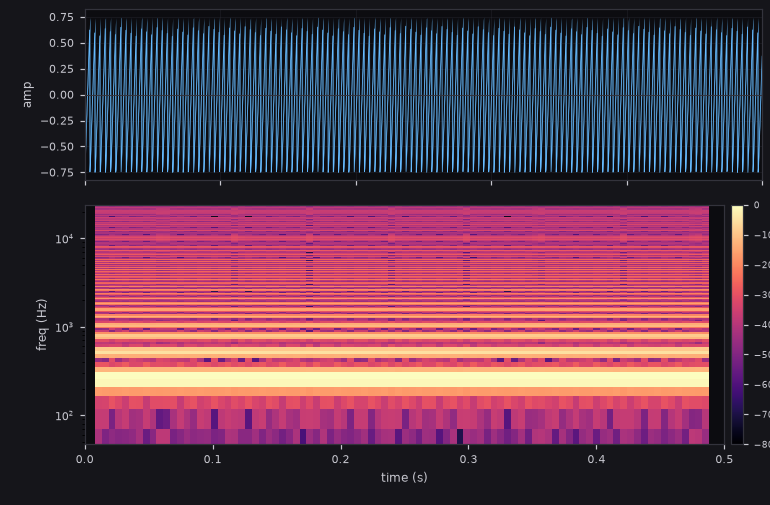

scaler (1)

out

peak 0.750 (-2.5 dBFS) · rms -7.3 dBFS · crest 4.8 dB · centroid 898 Hz · flat 0.002 · 500 ms · 24000 smp

scope (2)

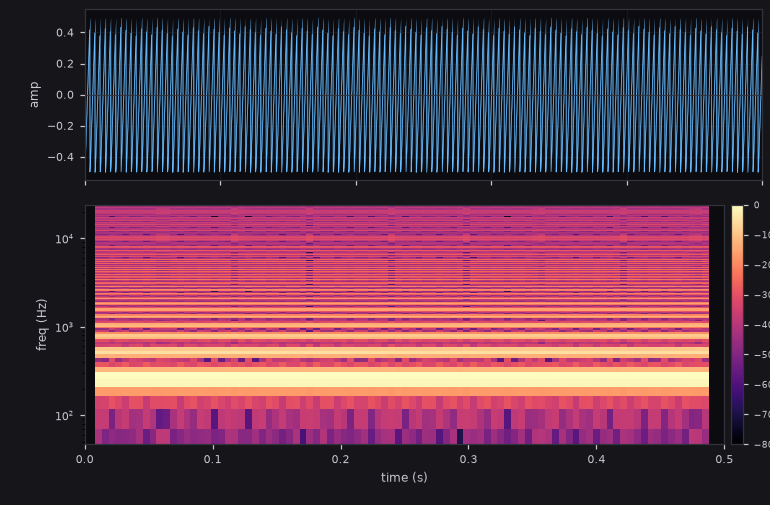

ch1_out

peak 0.500 (-6.0 dBFS) · rms -10.8 dBFS · crest 4.8 dB · centroid 898 Hz · flat 0.002 · 500 ms · 24000 smp

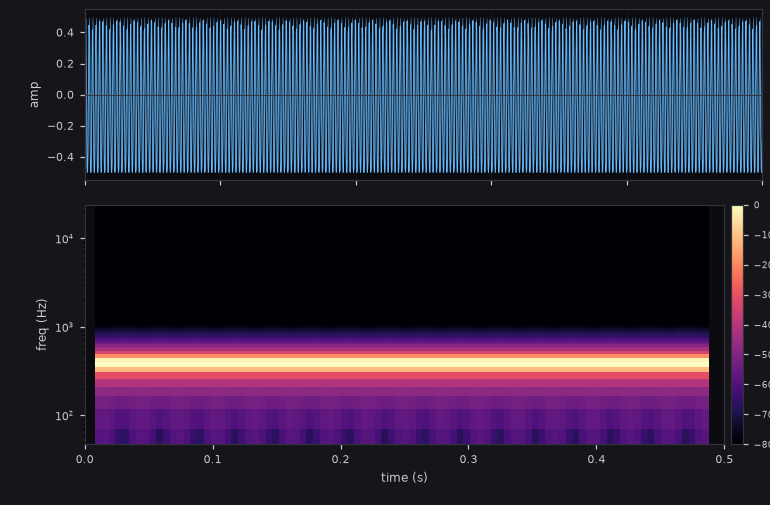

ch2_out

peak 0.500 (-6.0 dBFS) · rms -9.0 dBFS · crest 3.0 dB · centroid 392 Hz · flat 0.000 · 500 ms · 24000 smp

sidecar (2)

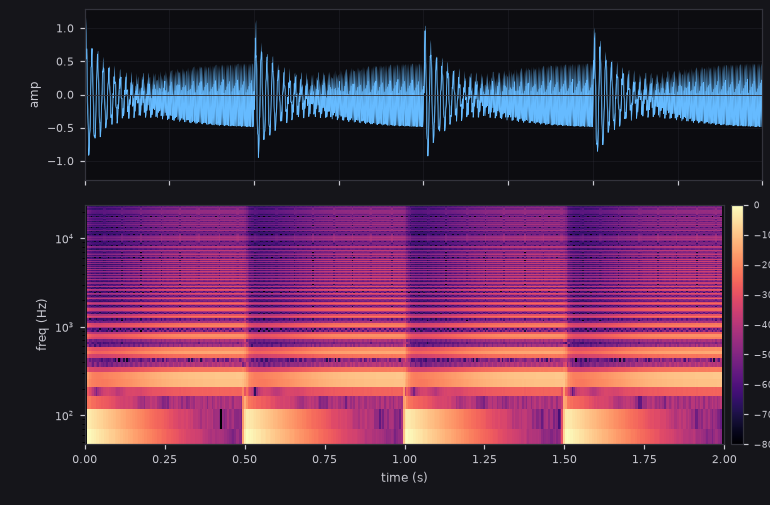

audio_l_out

peak 1.171 (1.4 dBFS) · rms -11.3 dBFS · crest 12.7 dB · centroid 513 Hz · flat 0.001 · 2000 ms · 96000 smp

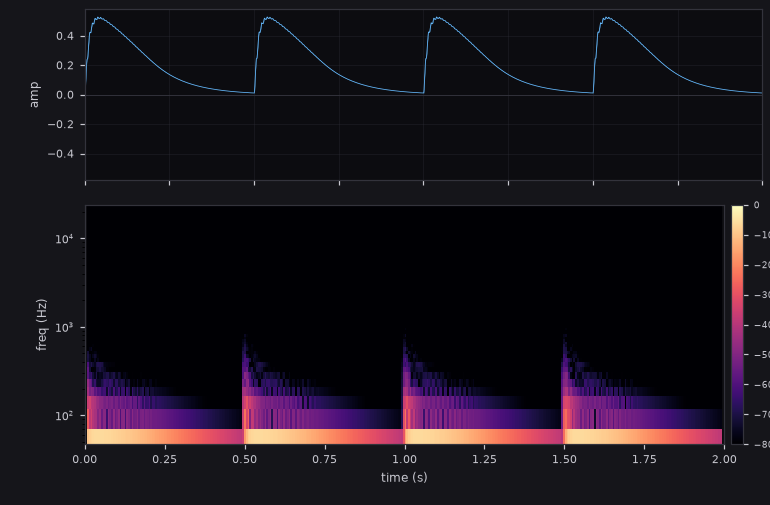

env_out

peak 0.528 (-5.5 dBFS) · rms -11.5 dBFS · crest 6.0 dB · centroid 3 Hz · flat 0.000 · 2000 ms · 96000 smp

slew-switch (2)

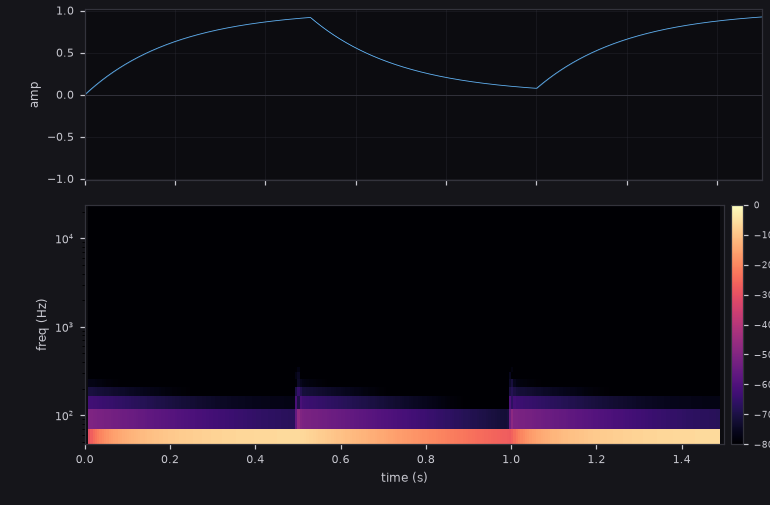

out2

peak 0.924 (-0.7 dBFS) · rms -4.3 dBFS · crest 3.6 dB · centroid 5 Hz · flat 0.000 · 1500 ms · 72000 smp

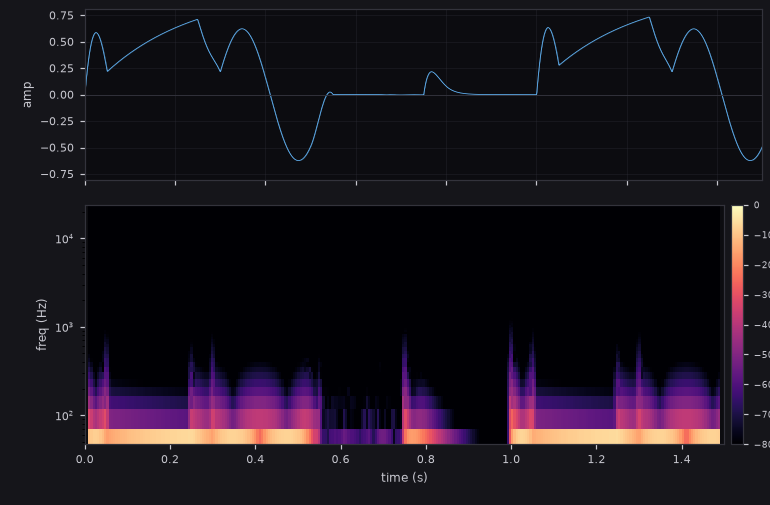

switched

peak 0.735 (-2.7 dBFS) · rms -7.7 dBFS · crest 5.0 dB · centroid 4 Hz · flat 0.000 · 1500 ms · 72000 smp

stereovca (2)

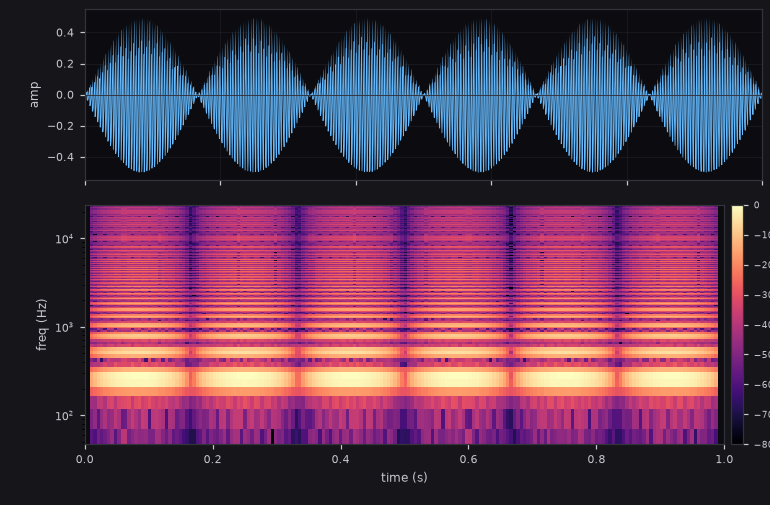

out_l

peak 0.500 (-6.0 dBFS) · rms -13.8 dBFS · crest 7.8 dB · centroid 898 Hz · flat 0.001 · 1000 ms · 48000 smp

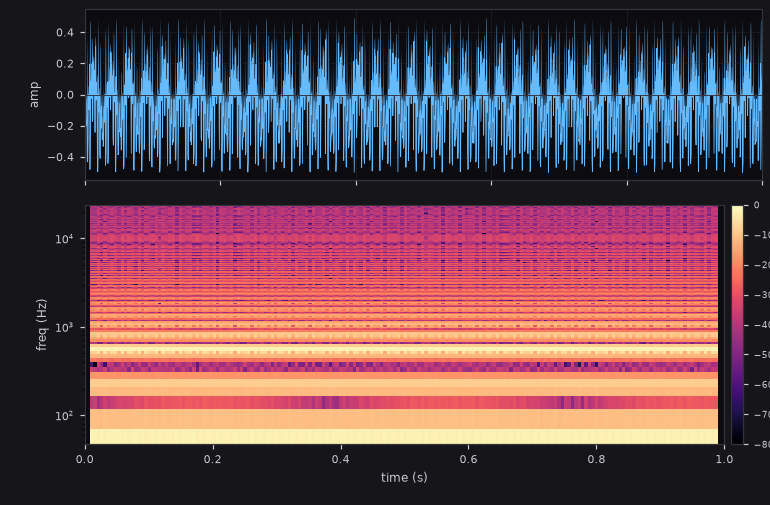

out_r

peak 0.499 (-6.0 dBFS) · rms -13.8 dBFS · crest 7.8 dB · centroid 923 Hz · flat 0.003 · 1000 ms · 48000 smp

synesthesia (4)

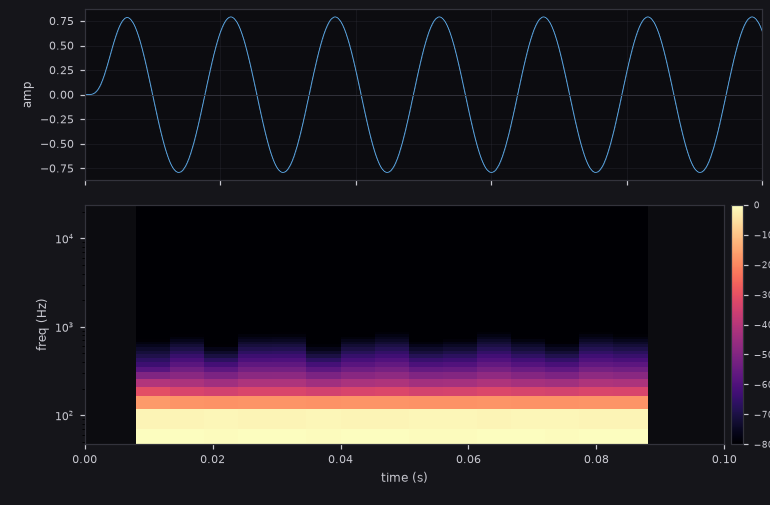

band1-65hz

peak 0.791 (-2.0 dBFS) · rms -5.1 dBFS · crest 3.1 dB · centroid 68 Hz · flat 0.000 · 100 ms · 4800 smp

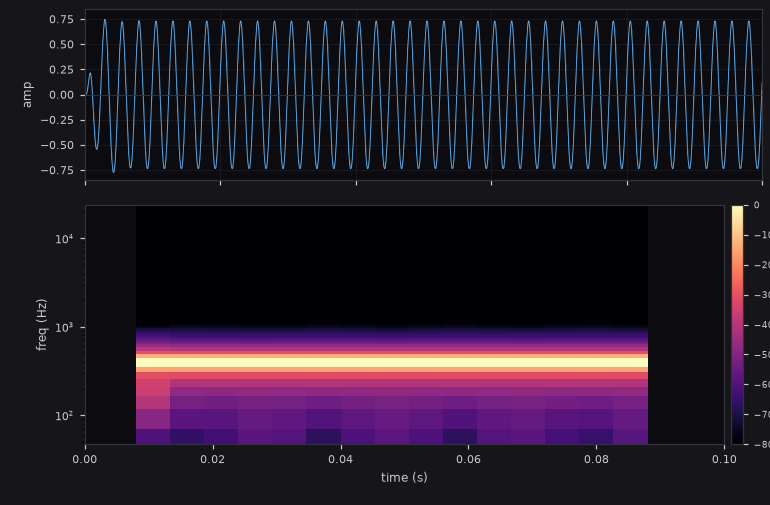

band2-400hz

peak 0.773 (-2.2 dBFS) · rms -5.8 dBFS · crest 3.5 dB · centroid 400 Hz · flat 0.000 · 100 ms · 4800 smp

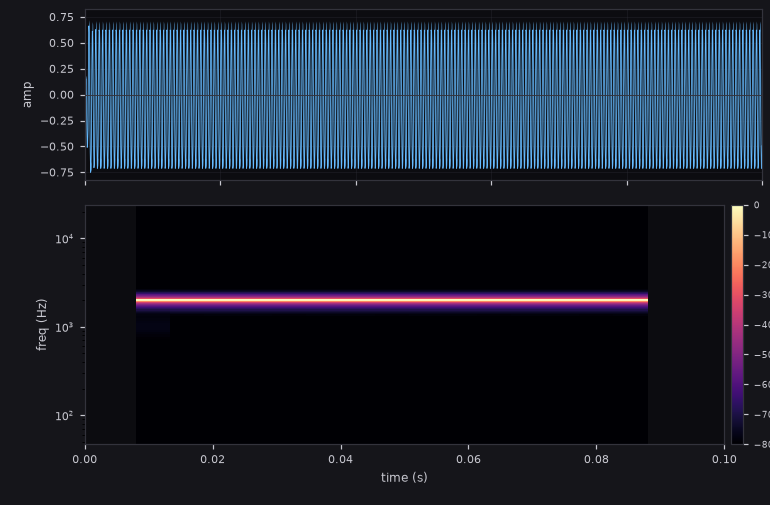

band3-2000hz

peak 0.750 (-2.5 dBFS) · rms -6.0 dBFS · crest 3.5 dB · centroid 1999 Hz · flat 0.000 · 100 ms · 4800 smp

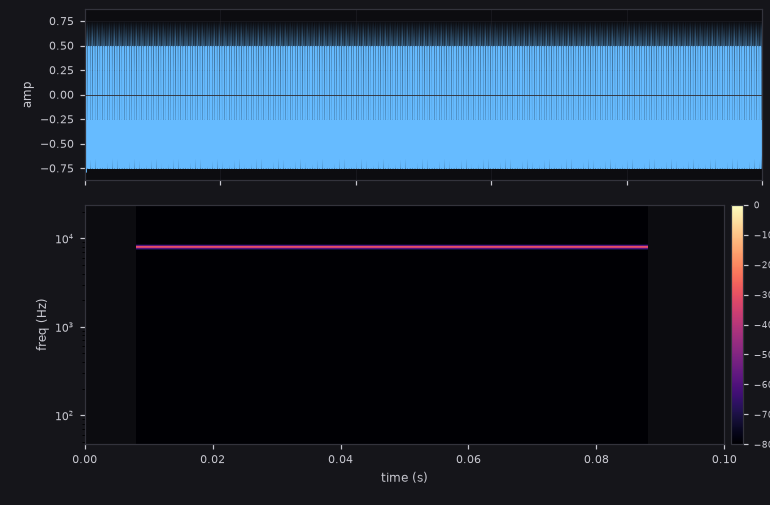

band4-8000hz

peak 0.792 (-2.0 dBFS) · rms -5.3 dBFS · crest 3.3 dB · centroid 8001 Hz · flat 0.000 · 100 ms · 4800 smp

treeohvox (1)

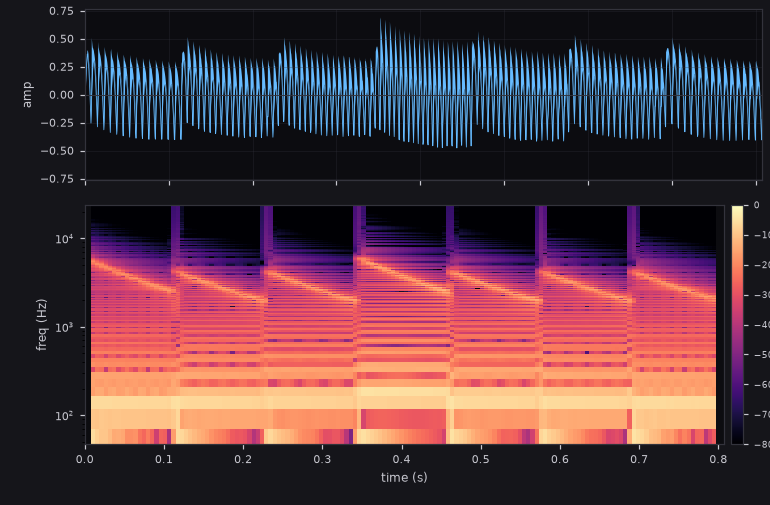

c-d-eb-f-eb-d-c

peak 0.695 (-3.2 dBFS) · rms -13.7 dBFS · crest 10.5 dB · centroid 833 Hz · flat 0.001 · 808 ms · 38766 smp

unityscalemathematik (3)

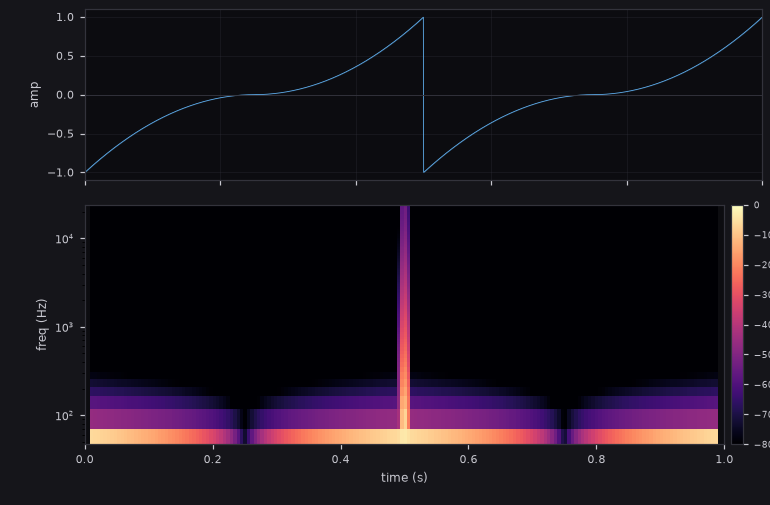

a_out

peak 1.000 (0.0 dBFS) · rms -7.0 dBFS · crest 7.0 dB · centroid 20 Hz · flat 0.000 · 1000 ms · 48000 smp

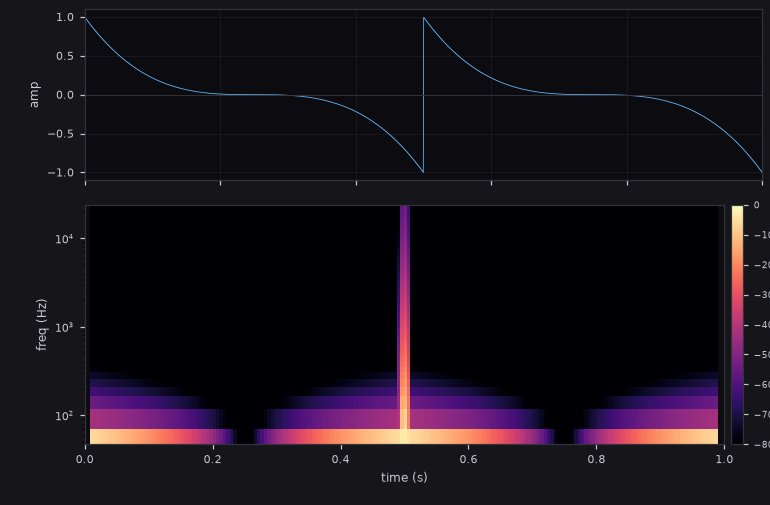

b_out

peak 1.000 (0.0 dBFS) · rms -8.5 dBFS · crest 8.5 dB · centroid 27 Hz · flat 0.000 · 1000 ms · 48000 smp

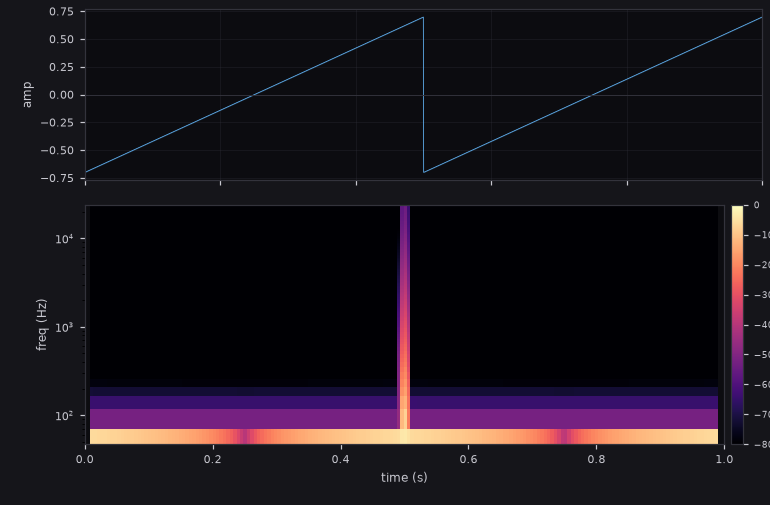

u_out

peak 0.700 (-3.1 dBFS) · rms -7.9 dBFS · crest 4.8 dB · centroid 13 Hz · flat 0.000 · 1000 ms · 48000 smp

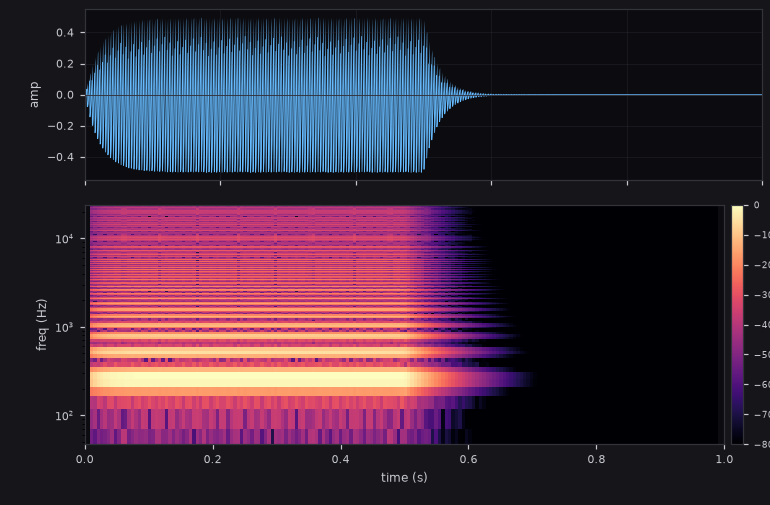

vca (1)

audio

peak 0.500 (-6.0 dBFS) · rms -14.0 dBFS · crest 8.0 dB · centroid 898 Hz · flat 0.001 · 1000 ms · 48000 smp

veils (2)

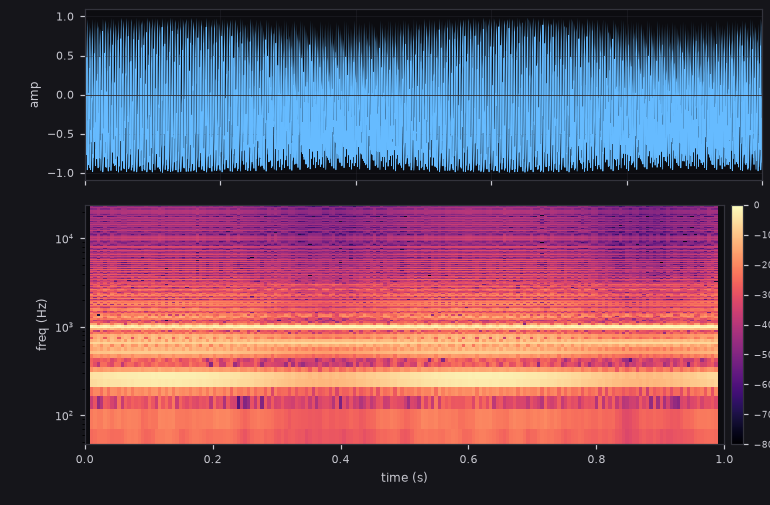

mix

peak 0.994 (-0.0 dBFS) · rms -3.9 dBFS · crest 3.9 dB · centroid 925 Hz · flat 0.001 · 1000 ms · 48000 smp

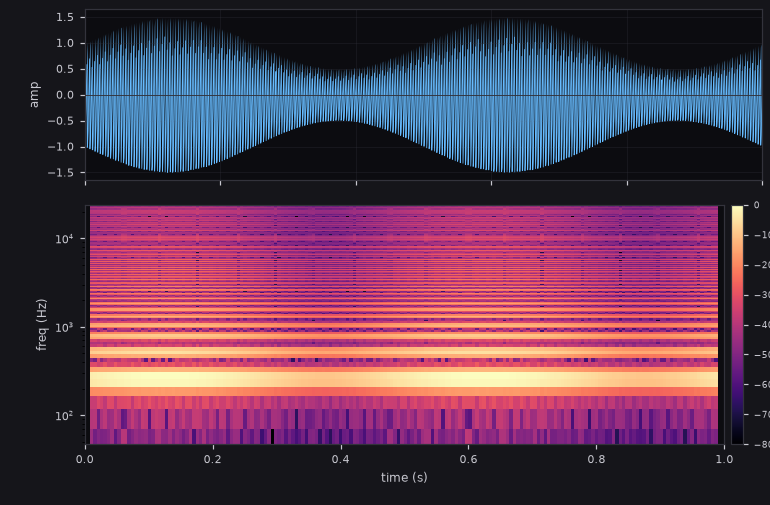

out1

peak 1.499 (3.5 dBFS) · rms -4.3 dBFS · crest 7.8 dB · centroid 897 Hz · flat 0.001 · 1000 ms · 48000 smp
